| Series: |
Electro-Pneumatic Module |
| Function: |
3/2 Way Normally Closed |
| Port Type: |
Push-in Ø 6mm |
| Valve Type: |
- |
| Number of Positions: |
2 |
| Number of Ports: |
3 |
| Actuation Type: |
Solenoid Air Operated |
| Override Functionality: |
Non-Locking and Locking Manual Overrides |
| Mounting Type: |
Stacking |
| Specifications Met: |
n/a, IP20 |
| Number of Manifold Outlets: |
n/a |
| Port Size: |
6mm |
| Port Type: |
Tube Push-In Connections |
| Minimum Flow Rate: |
0.14 Cv |
| |
| Maximum Flow Rate: |
0.16 Cv, n/a |
| Nominal Flow Coefficient: |
n/a |
| Input Voltage: |
12 to 48VDC, 120/240VAC |
| Electrical Connection: |
terminal strip |
| Fieldbus Protocol: |
n/a |
| Pressure Rating: |
40 to 120 psig, 3 to 8.2 bar |
| Minimum Operating Pressure: |
40 psig |
| Operating Temperature: |
-15 to +60 °C, +5 to +140 °F |
| Media: |
Air |
| Lubricant: |
Lubricated or Non-Lubricated air |
| Power Consumption: |
1.2W, 1.6VA |
| Body Material: |
Glass Filled Polyamide |
| Seal Material: |
Poppet: Polyurethane | Seals: Nitrile (Buna N) |
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929 hoặc email phuc.dao@phucthinh-tech.com

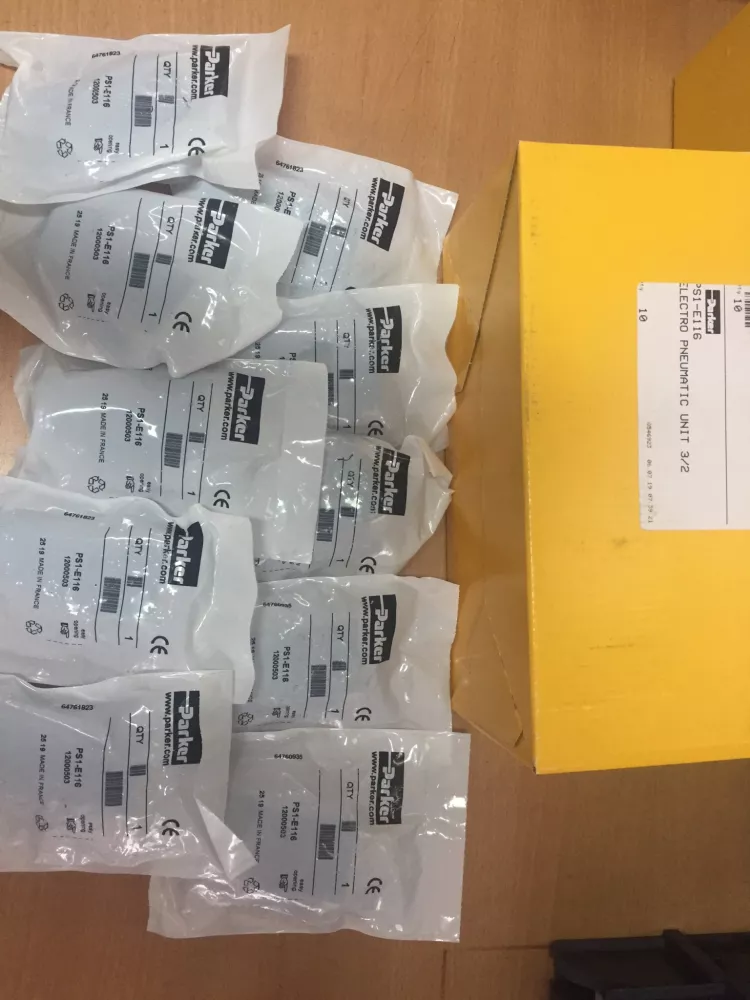

Van điện từ Parker PS1-E116 được thiết kế gọn nhẹ. Van điện từ Parker PS1-E116 ứng dụng cho nhiều lĩnh vực
Vui lòng liên hệ để được báo giá tốt nhất cho Van điện từ Parker PS1-E116
