SCLSD-520-10-07
| Electrical Connection: | M12x1 connecting plug; 4-pole |
| Specifications Met: | CE |
| Output Type: | 1 switching output, with analogue output |

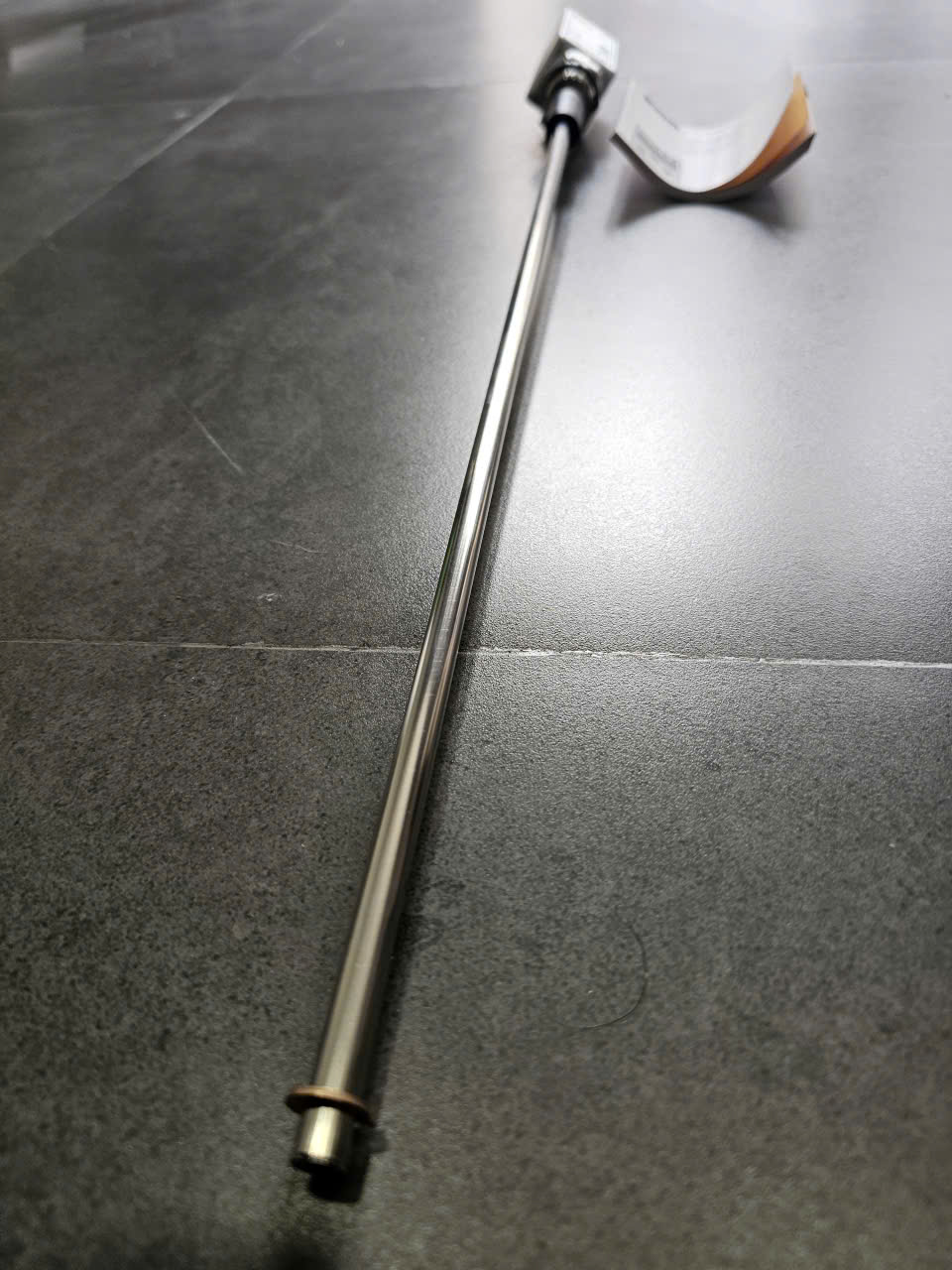

| Length: | 520 mm Installation length |
| Division: | High Pressure Connectors Europe Division |
| Product Style: | Display sensor |
| Operating Temperature: | -20 to 85 °C, -4 to 185 °F |
| Operating Pressure: | 1 bar |
| Maximum Fluid Temperature: | +85 °C (185°F) |
| Minimum Fluid Temperature: | -20 °C (-4 °F) |
| Port Size: | G3/4 BSPP |
| Port Type: | G3/4 BSPP; nickel-plated brass; ED soft seal NBR* |
| Weight: | n.a. |
| Height: | n.a. |
| Width: | n.a. |
| Products | Length | Specifications Met | Output Type | Electrical Connection |
|---|---|---|---|---|
| SCLSD-1000-00-07 | 1000 mm Installation length | CE | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-1000-10-05 | 1000 mm Installation length | CE | 2 switching outputs, with analogue output | M12x1 connecting plug; 5-pole |
| SCLSD-1000-10-07 | 1000 mm Installation length | CE | 1 switching output, with analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-250-00-07 | 250 mm Installation length | CE | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-250-00-07-MA | 250 mm Installation length | CE, DNV, GL, ABS | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-250-10-05 | 250 mm Installation length | CE | 2 switching outputs, with analogue output | M12x1 connecting plug; 5-pole |
| SCLSD-250-10-05-MA | 250 mm Installation length | CE, DNV, GL, ABS | 2 switching outputs, with analogue output | M12x1 connecting plug; 5-pole |
| SCLSD-250-10-07 | 250 mm Installation length | CE | 1 switching output, with analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-370-00-07 | 370 mm Installation length | CE | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-370-10-05 | 370 mm Installation length | CE | 2 switching outputs, with analogue output | M12x1 connecting plug; 5-pole |
| SCLSD-370-10-07 | 370 mm Installation length | CE | 1 switching output, with analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-370-10-07-MA | 370 mm Installation length | CE, DNV, GL, ABS | 1 switching output, with analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-520-00-07 | 520 mm Installation length | CE | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-520-00-07-MA | 520 mm Installation length | CE, DNV, GL, ABS | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-520-10-05 | 520 mm Installation length | CE | 2 switching outputs, with analogue output | M12x1 connecting plug; 5-pole |
| SCLSD-520-10-07 | 520 mm Installation length | CE | 1 switching output, with analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-800-00-07 | 800 mm Installation length | CE | 2 switching outputs,no analogue output | M12x1 connecting plug; 4-pole |
| SCLSD-800-10-05 | 800 mm Installation length | CE | 2 switching outputs, with analogue output | M12x1 connecting plug; 5-pole |
| SCLSD-800-10-07 | 800 mm Installation length | CE | 1 switching output, with analogue output | M12x1 connecting plug; 4-pole       |
SCLSD-520-10-07

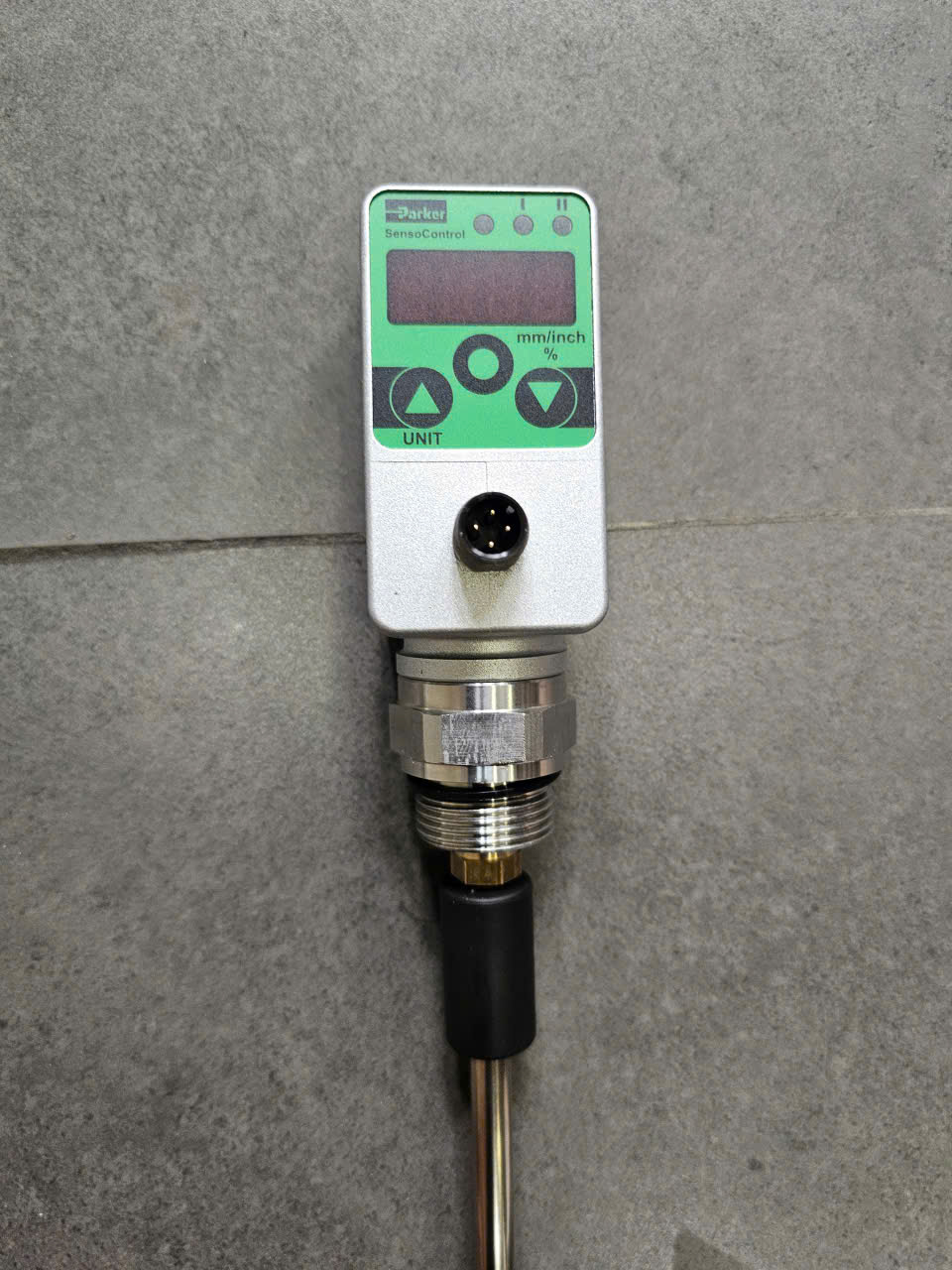

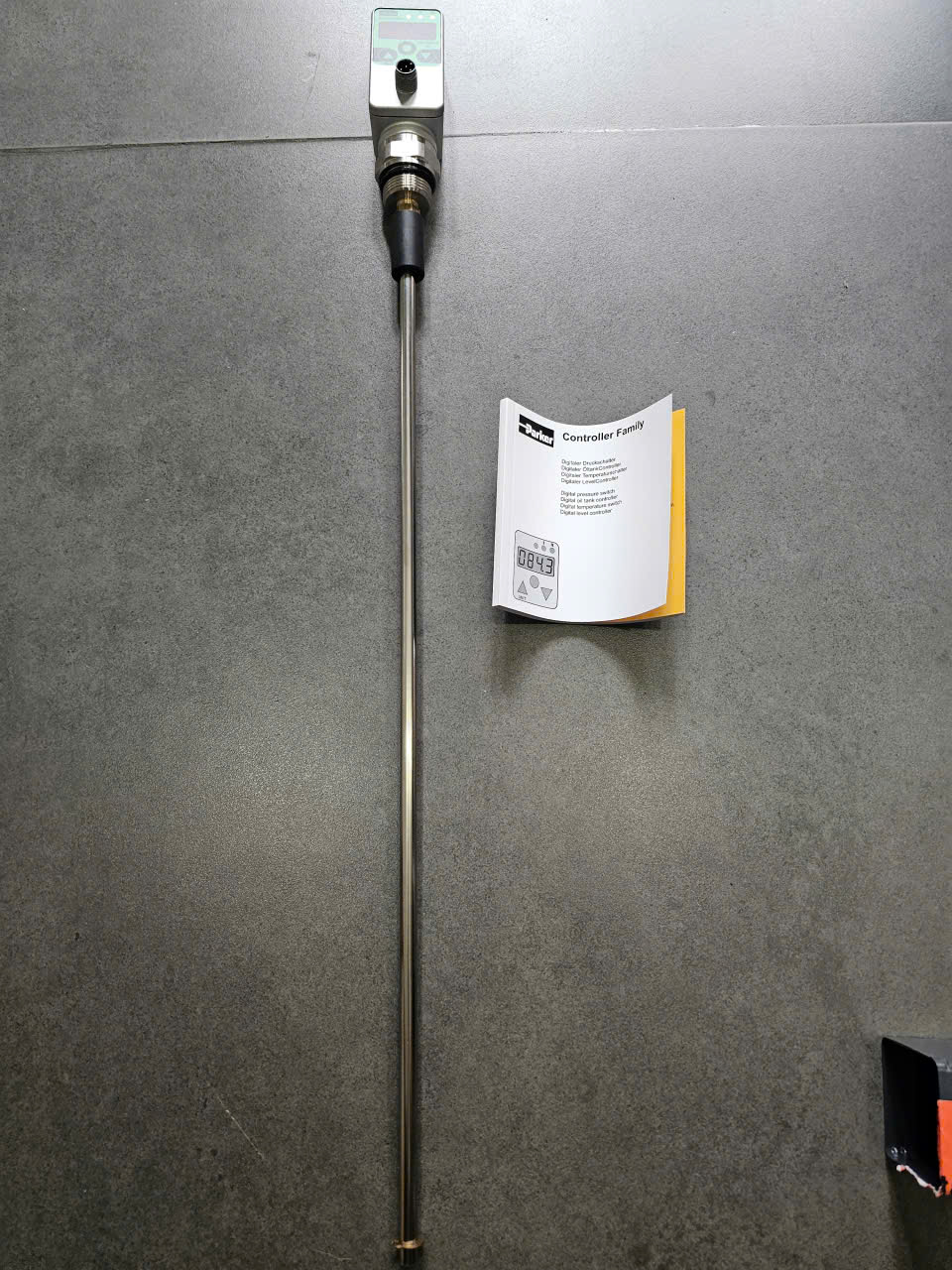

The Level Controller combines the functions of a level switch, a level sensor and a level display. It is ideal for the monitoring of tank contents
