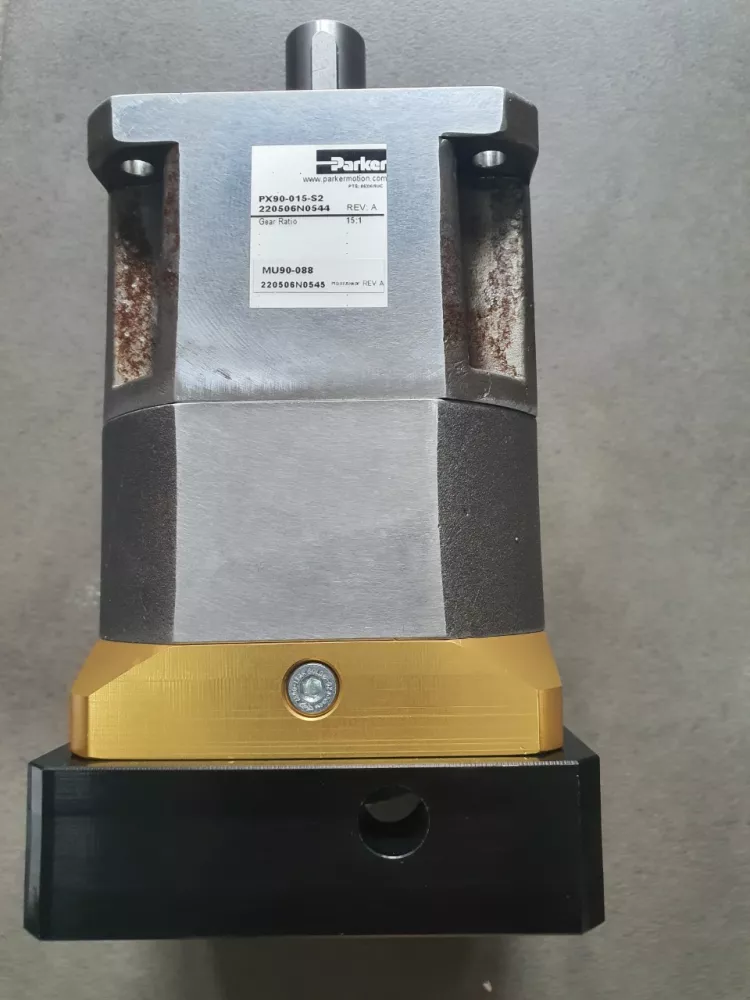

Hộp số giảm tốc Parker PX90-015-S2/MU90-088

Hộp số giảm tốc Parker PX90-015-S2/MU90-088
parker PX90-015-S2 MU90-088Hộp số giảm tốc Parker PX90-015-S2MU90-088 (2)Hộp số giảm tốc Parker PX90-015-S2MU90-088 (3)Hộp số giảm tốc Parker PX90-015-S2MU90-088 (4)Hộp số giảm tốc Parker PX90-015-S2MU90-088 (5)Hộp số giảm tốc Parker PX90-015-S2MU90-088PX90-015-S2 MU90-088 nameplatePX90-015-S2 MU90-088 paperPX90-015-S2 MU90-088 gearboxPX90-015-S2 MU90-088z4486160840312_14db9758497c0f92fc40e9d92a406dd6z4486160844182_42688ea70782efbbce6bb85112468c46z4486160848379_8ff0d3f9e7e316fb3070c8133d03d05fz4486160850854_a97b51bc0fab2cc103b55af3689d05bdz4486160855296_a6c535e71d003cf382db271d93596df0z4486160859534_9909a858ca0f10ad3b3b9a74464a635fz4486160861878_375bde6bafc3b8d4ade3b36f60455012

Hộp số giảm tốc Parker PX90-015-S2/MU90-088


Hãy trở thành người đầu tiên đánh giá sản phẩm này( 0)
Gen II Stealth Gearhead "In-Line" PX High performance at an exceptional value makes STEALTH PX the gearhead of choice for today''s lower cost servo motor applications. Stealth PX delivers the best value with the advantages of helical planetary technology. BENEFITS:   High Torque...More than standard planetaries. Lowest Backlash...Less than 15 arcminutes (10 arcminute option) …

Liên hệ

  • Mã sản phẩm:
  • PX90-015-S2.MU90-088
  • Đơn vị tính:
  • Cái
  • Tình trạng:
  • Nhận đặt hàng
  • Thương hiệu:
  • Parker Hannifin
  • Nhà cung cấp:
  • Parker US

DOWNLOAD CATALOGUE Parker Gearheads

Gearheads and Gearmotors ~ Parker Bayside

  Backlash (arc minutes) Config. Cont Torque Tc (Nm) Frame Size Gear Teeth IP Rating Noise (db) Ratios
Gen II Stealth Gearhead "In-Line" PS < 3 In-Line 5 to 1,808 60 to 220 mm
(6 sizes)		 Helical Planetary IP 65 <68 3 to 100
(12 ratios)
Gen II Stealth Gearhead "In-Line" PX < 8 In-Line 18 to 158 60 to 115 mm
NEMA 23 to 42
(3 sizes)		 Helical Planetary IP 65 <70 3 to 100
(11 ratios)
Gen II Stealth Gearhead "Right Angle" RS < 4 Right Angle 11 to 1,808 60 to 220 mm
(7 sizes)		 Helical Planetary / Spiral Bevel IP 65 <72 5 to 100
(9 ratios)
Gen II Stealth Gearhead "Right Angle" RX < 14 Right Angle 7 to 45 60 to 115 mm
NEMA 23 to 42
(3 sizes)		 Helical Planetary IP 65 <70 5 to 100
(9 ratios)
Stealth Gearhead "Right Angle" MultiDrive < 4 RT - Right Angle Thru Bore, RD - Right Angle Double Shaft, RB - Right Angle 34 to 565 90 to 220 mm
(5 sizes)		 RT - Spiral Bevel / Helical, RD and RB - Spiral Bevel IP 65   RT - 3 to 30 (5 ratios), RD - 1 to 30 (7 ratios), RB - 1 to 3 (3 ratios)
PV Series "In-Line Power and Versatility" < 18 IN-LINE 3.5 to 70 40,60,90,115 mm NEMA17,23,34,42 Straight Tooth Planetary IP64 <65 3, 4, 5, 7, 10, 12, 15, 16, 20, 25, 30, 35, 40, 50, 70, 100
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

Gen II Stealth Gearhead "In-Line" PX

High performance at an exceptional value makes STEALTH PX the gearhead of choice for today''s lower cost servo motor applications. Stealth PX delivers the best value with the advantages of helical planetary technology.

BENEFITS:



  • High Torque...More than standard planetaries.
  • Lowest Backlash...Less than 15 arcminutes (10 arcminute option)
  • Quietest operation...Less than 70db
  • High Input Speeds...Up to 5,000 RPM
  • High Efficiency...Over 90% efficiency.

3 Frame Sizes

  • PX23
  • PX34
  • PX42
  • PX56
  • PX60
  • PX90
  • PX115
  • PX142

Multiple Ratios



  • 3:1
  • 4:1
  • 7:1
  • 5:1
  • 10:1
  • 15:1
  • 20:1
  • 25:1
  • 30:1
  • 50:1
  • 70:1
  • 100:1
