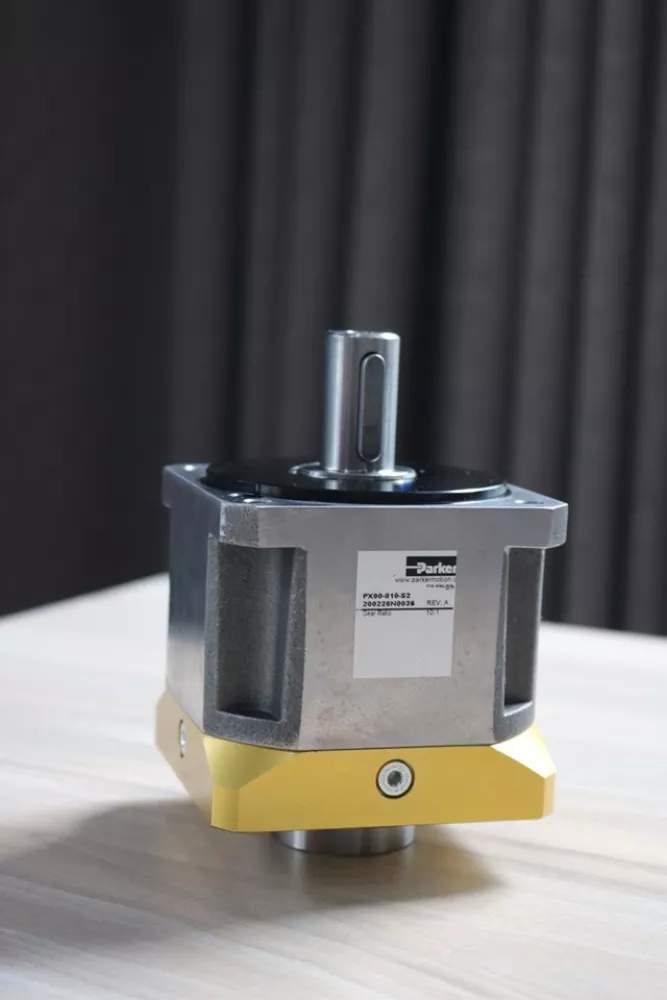

| Series: | PX |
| Frame Size: | 90 |
| Ratio: | 010 |
| Backlash: | S2 - Standard |
| Mounting Kit: | No Mounting Kit |
| Performance: | Mid Precision |
| Configuration: | Inline |
| Gear Geometry: | Helical Planetary |
| Frame Size: | 60mm | 90mm | 115mm | 142mm | NEMA23 | NEMA34 | NEMA42 | NEMA56 |
| Backlash: | < 8 to < 12 arc-min, < 6 to < 10 arc-min |
| Rated Torque: | 20 - 278 Nm, 178 - 2474 lb-inch |
| Radial Load Capacity: | 1550 - 5500 N, 348 - 1235 lb |
| Ratio: | 3, 4, 5, 7, 10, 15, 20, 25, 30, 50, 70, 100:1 |
| Maximum Input Speed: | 6000 RPM |
| Ingress Protection Rating: | IP65 |
| Efficiency Rating: | 93 - 97 % |
| Custom Versions Available: | Yes |
