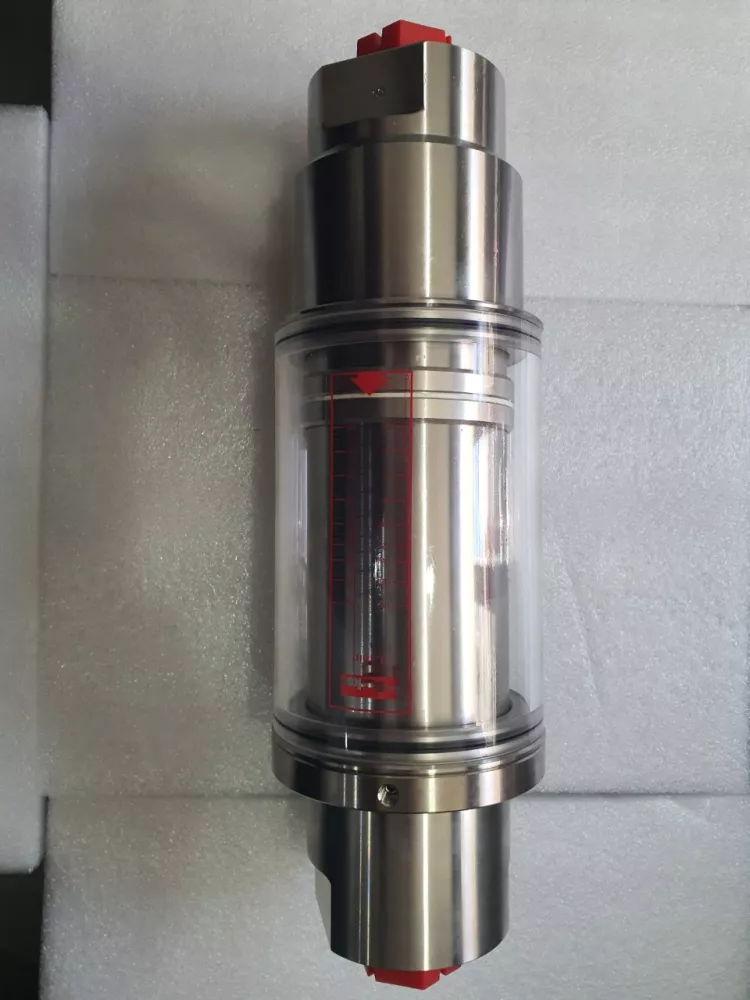

| High Pressure Mechanical Flowmeter – Flowline – FM26432112 | |
|---|---|
| The Flowline Series comprises a range of highly rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 – 360 L/min. Maximum allowable working pressure | 350 bar. |
| Housing Material | Stainless Steel |
| Flow Rate (lpm) | 20 – 180 |
| Fluid Type | Oil |
| Maximum Operating Pressure | 350 bar, 5000 psi |
| Weight | 8 kg |
| Connection Size | BSP parallel threads |
| Minimum Fluid Temperature | -20 °C, -4 °F |
| Maximum Fluid Temperature | 105 °C, 221 °F |
