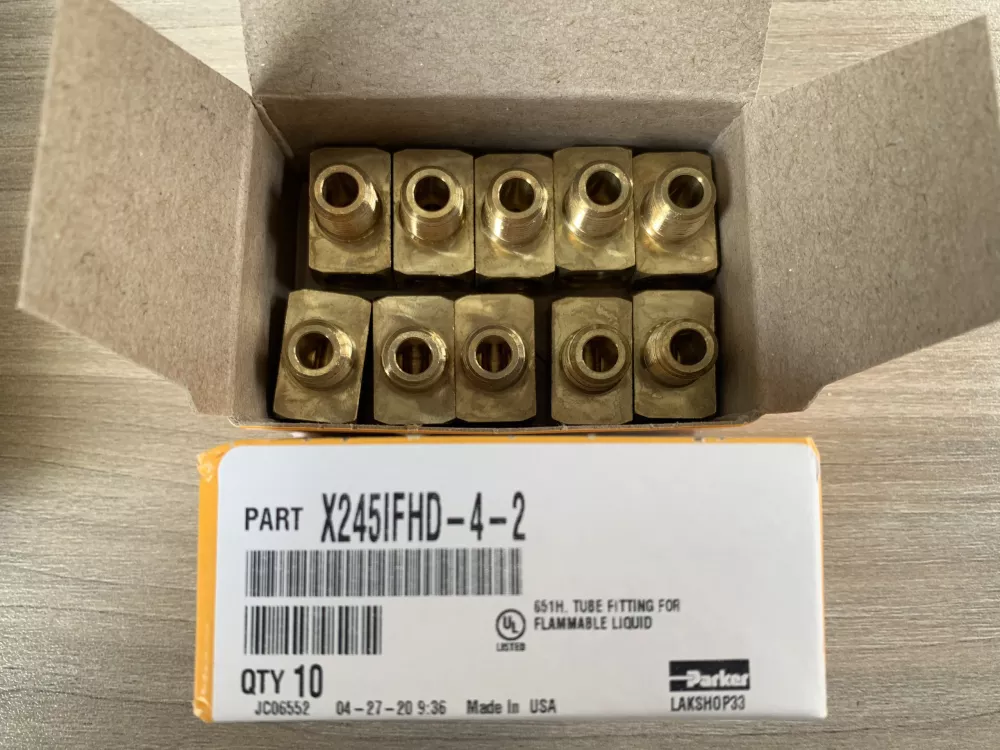

| Shape: | Branch Tee |
| Connection 2 Thread Size (inch): | 1/8 |
| Connection 1 Style: | Inverted Flare |
| Style: | Flare to Pipe |
| Connection 1 Tube O.D. (inch): | 1/4 |
| Connection 2 Style: | Male Pipe |
| Connection 2 Tube O.D. (inch): | na |
| Minimum Operating Temperature: | -65 °F, -53 °C |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Maximum Operating Pressure: | 1400 psi, 96 bar |
| Tube Material: | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared |
| Application: | Pumps, Brake Lines |
| Specifications Met: | SAE J512 |
| Media: | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon |
| Body Material: | Brass |
| Nut Material: | Brass, Zinc Chromate Steel |
