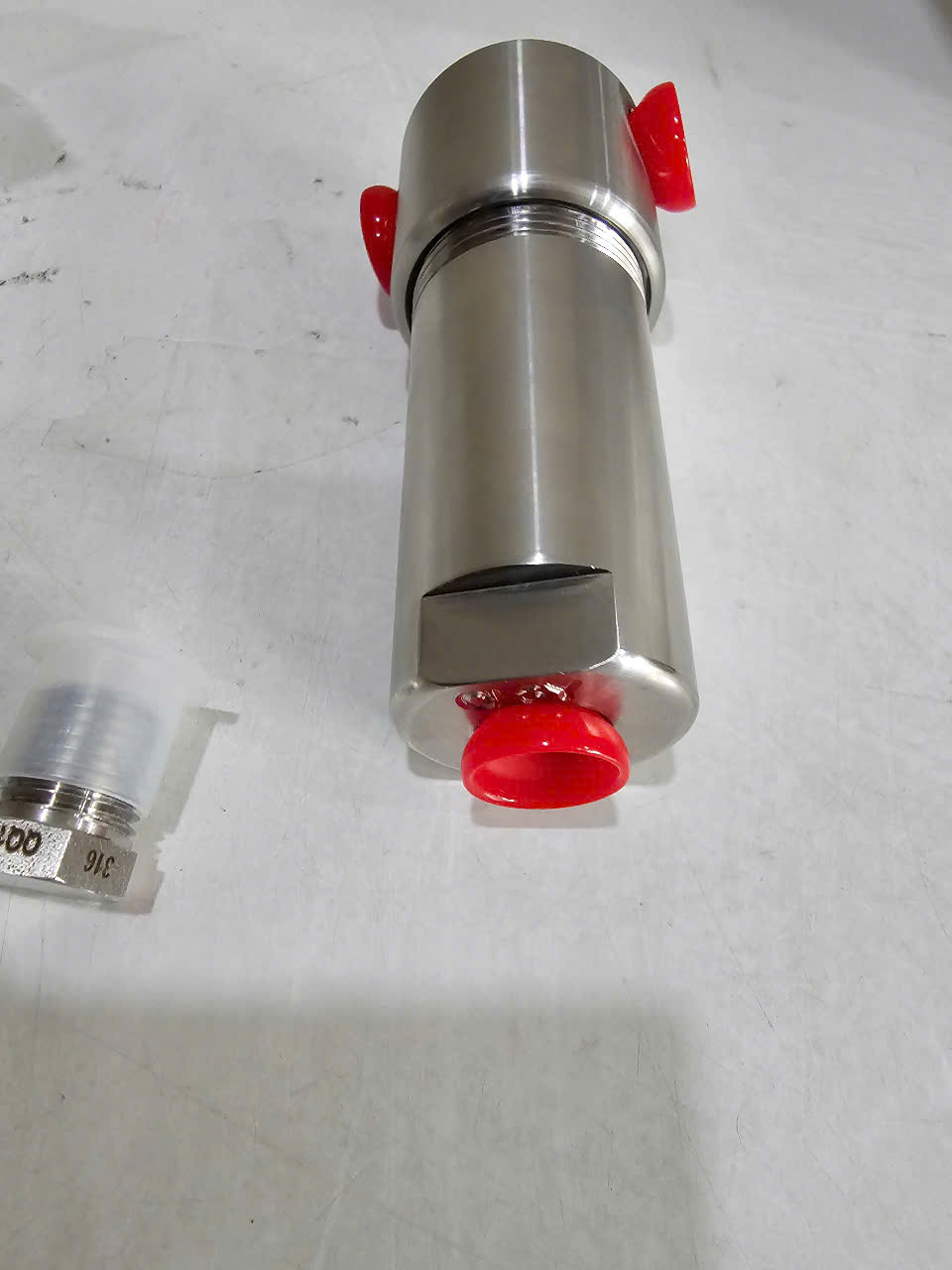

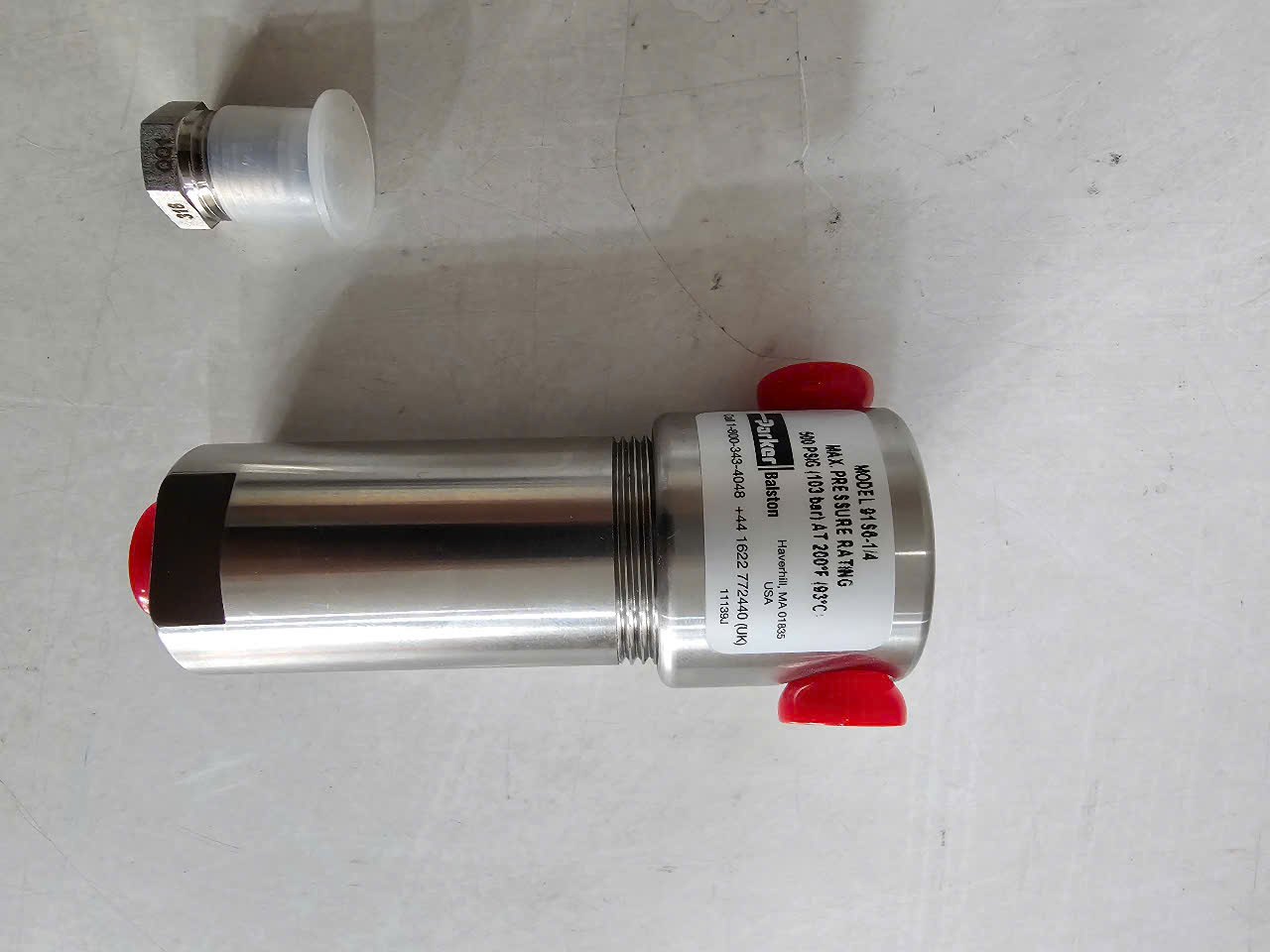

91S6-1/4 BALSTON

91S6-1/4

This is a special version with 1/4″ NPT, replacing the standard 1/8″ NPT Standard version

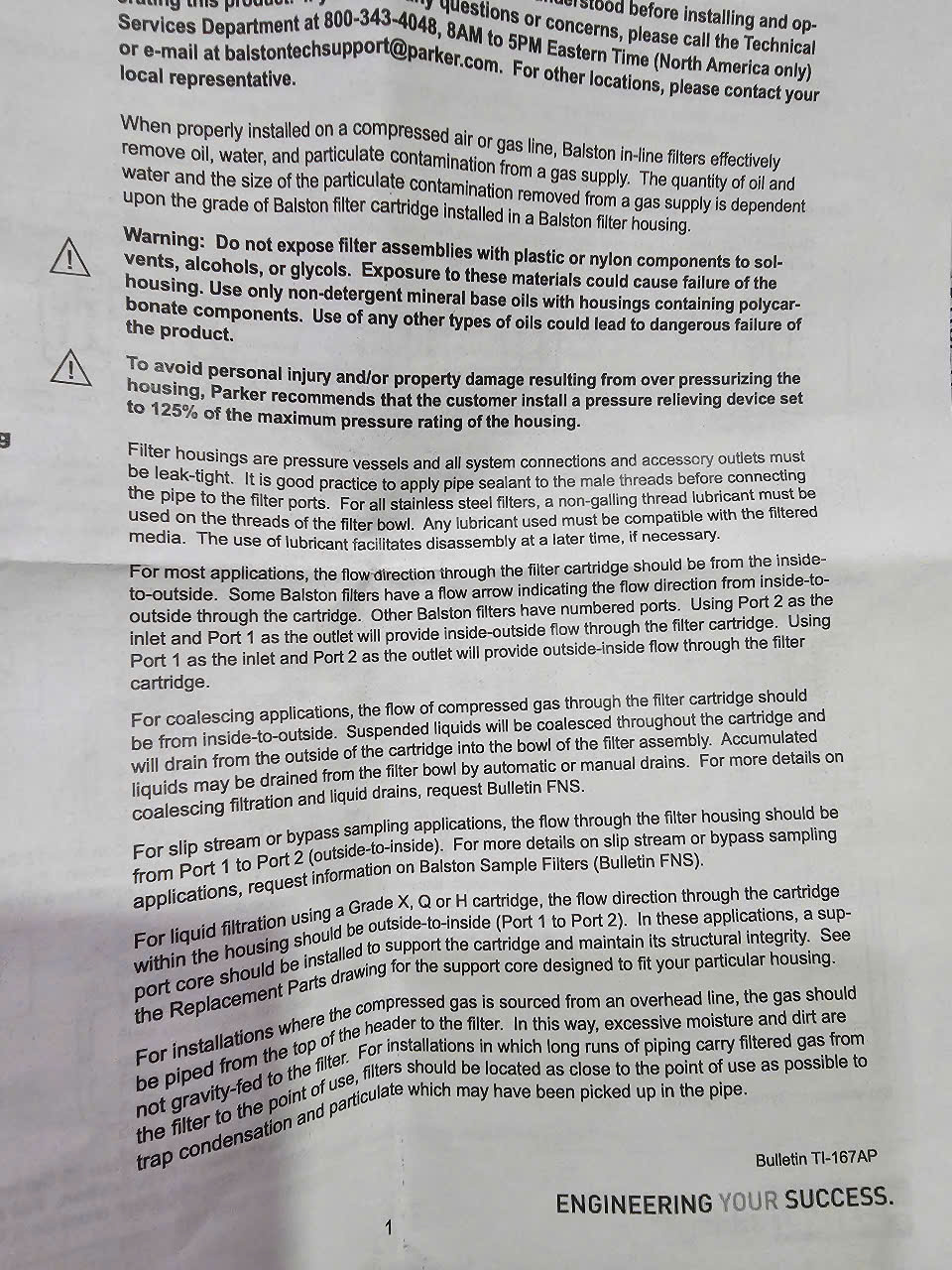

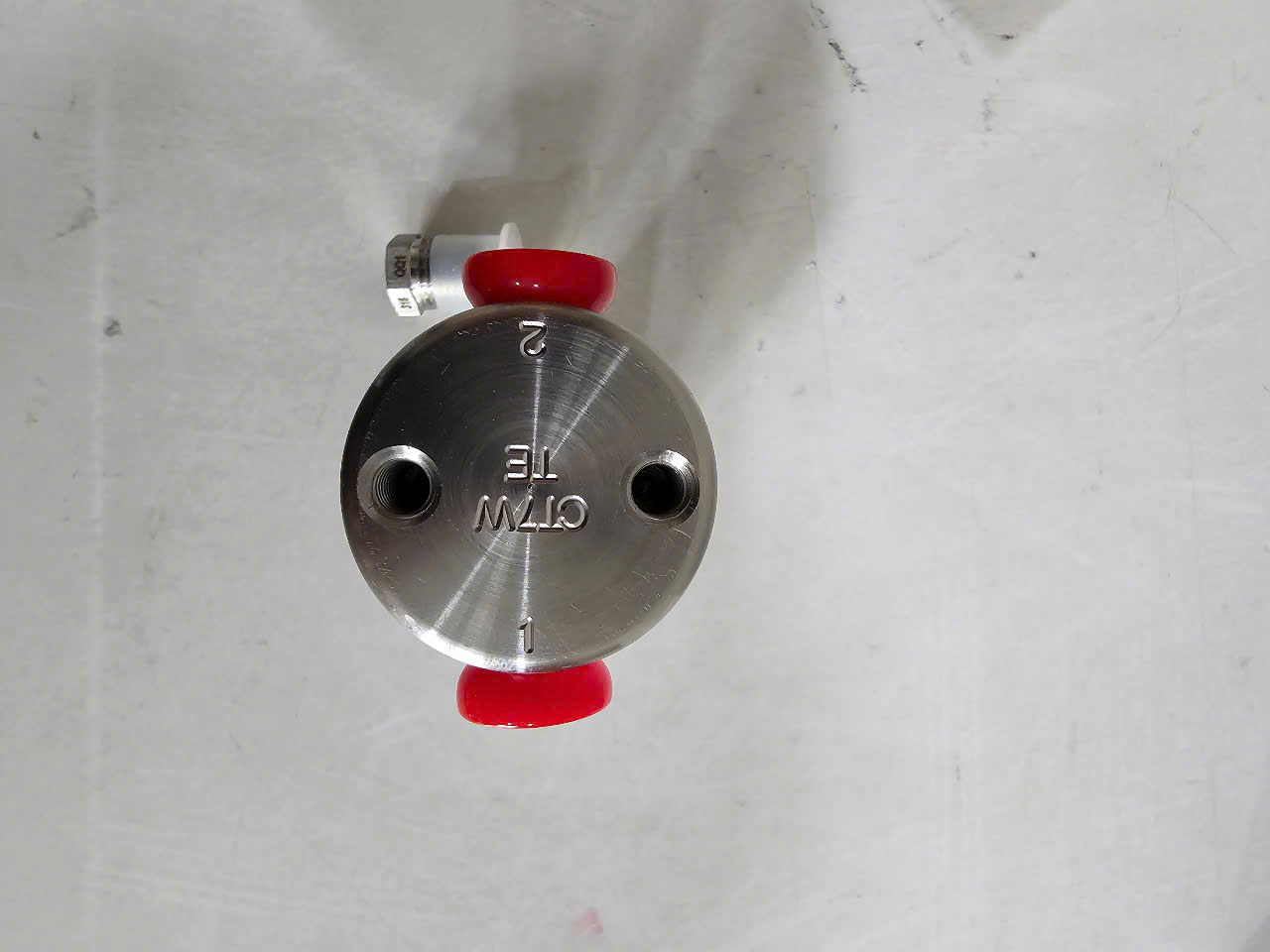

NOTE : FOR SLIP STREAM OR BYPASS SAMPLING APPLICATION  : PORT 1 TO 2 ( OUTSIDE TO INSIDE)

FOR LIQUID FILTRATION USE GRADE X Q H : PORT  1 TO 2 ( OUTSIDE TO INSIDE)

FOR MOST APPLICATION AND COALESCING : PORT 2 TO 1  ( INSIDE TO OUTSIDE)

Key Specifications – Model: 91S6

• Filter Type: T-type low-volume sample filter

• Connections: 1/4″ NPT (inlet, outlet, and drain ports)

• Housing Material: 316 stainless steel (body, cap, internals)

• Seals: Viton® (FKM)

• Max Pressure: Up to 1,500 psig (~103 bar)

• Max Temperature: +204°C (400°F)

• Internal Volume: Approx. 95 ml (small volume = fast response time)

• Filtration Efficiency:

  • Solids ≥ 0.01 μm: ≥ 99.99999% removal

  • Liquids ≥ 1 μm: ≥ 98% removal

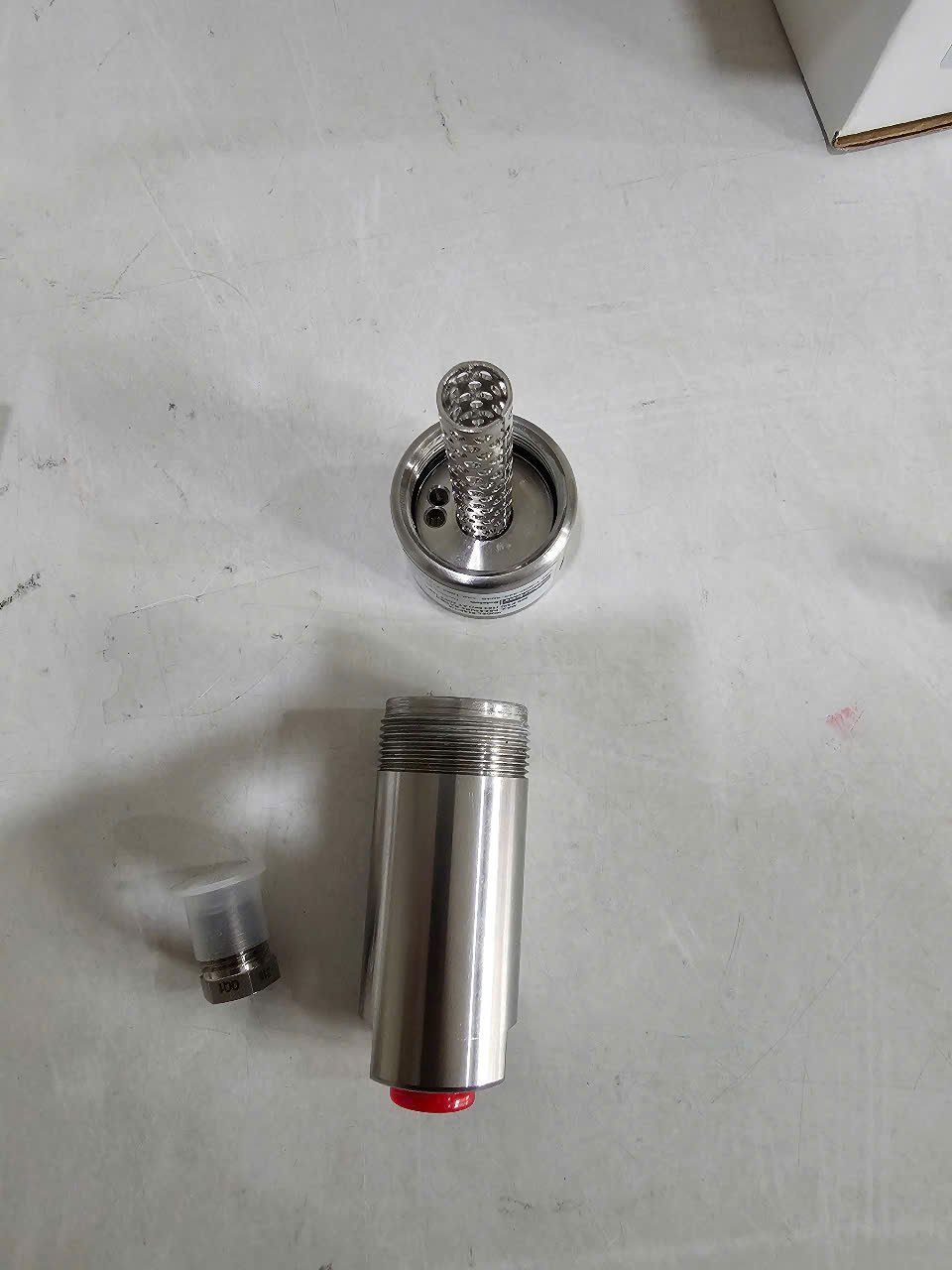

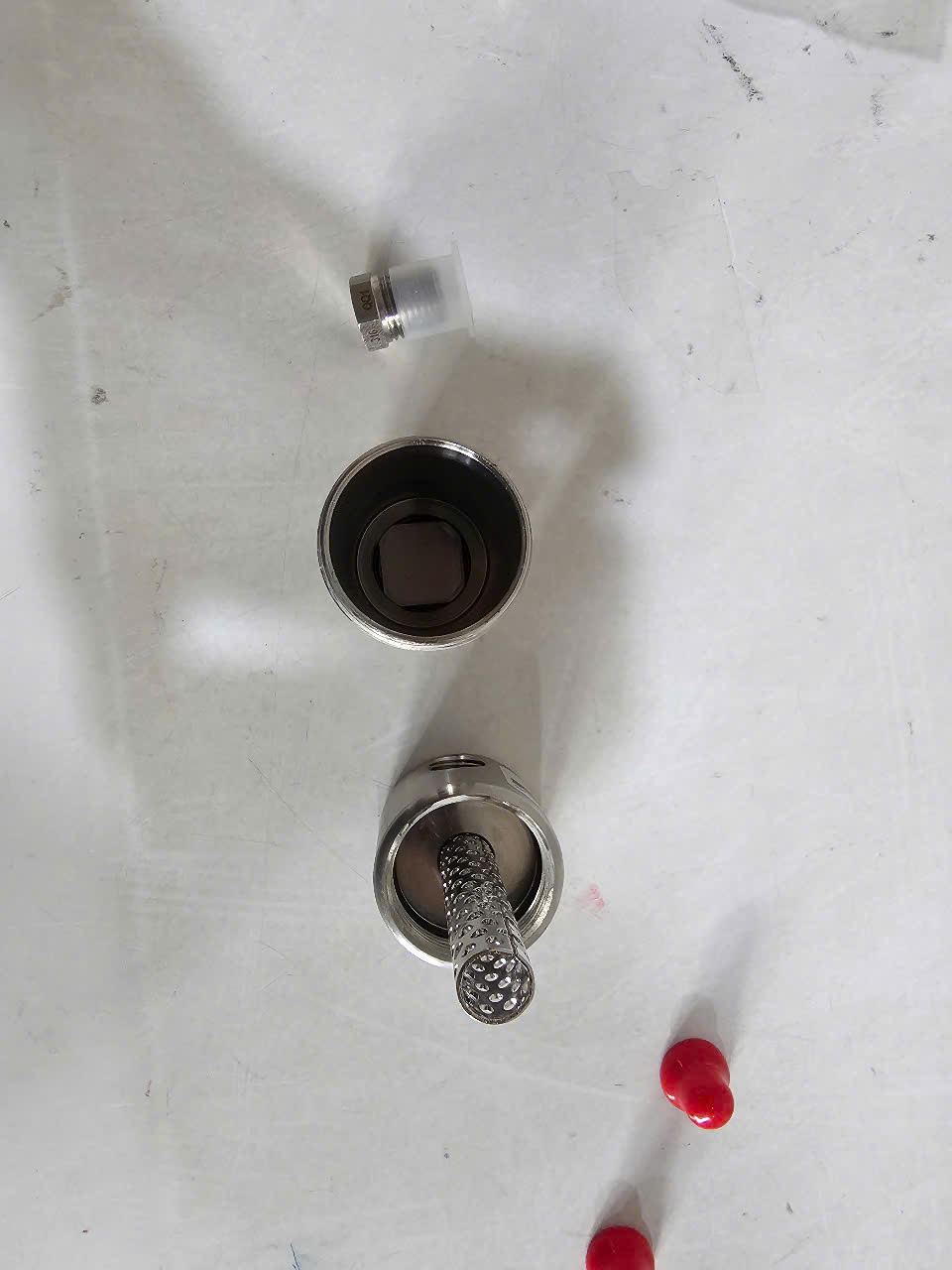

• Special Feature: Membrane cartridge can be replaced without disconnecting the process lines
