| Maximum Flow Rate: | n/a |
| Connection 1 Thread Size (metric): | G3/8 |
| Brand: | Legris |
| Division: | Low Pressure Connectors Europe Division |
| Industry: | Industrial Manufacturing Equipment |
| Application: | Pneumatic, Process Control, Safety, Fluid Control, Automotive Process, Foundry, Forming, Machine Tools, Textile, Spectacle-Making Industry, Turbines, Deep-Sea Diving |
| Technology: | Fluid & Gas Handling, Process Control, Pneumatics |

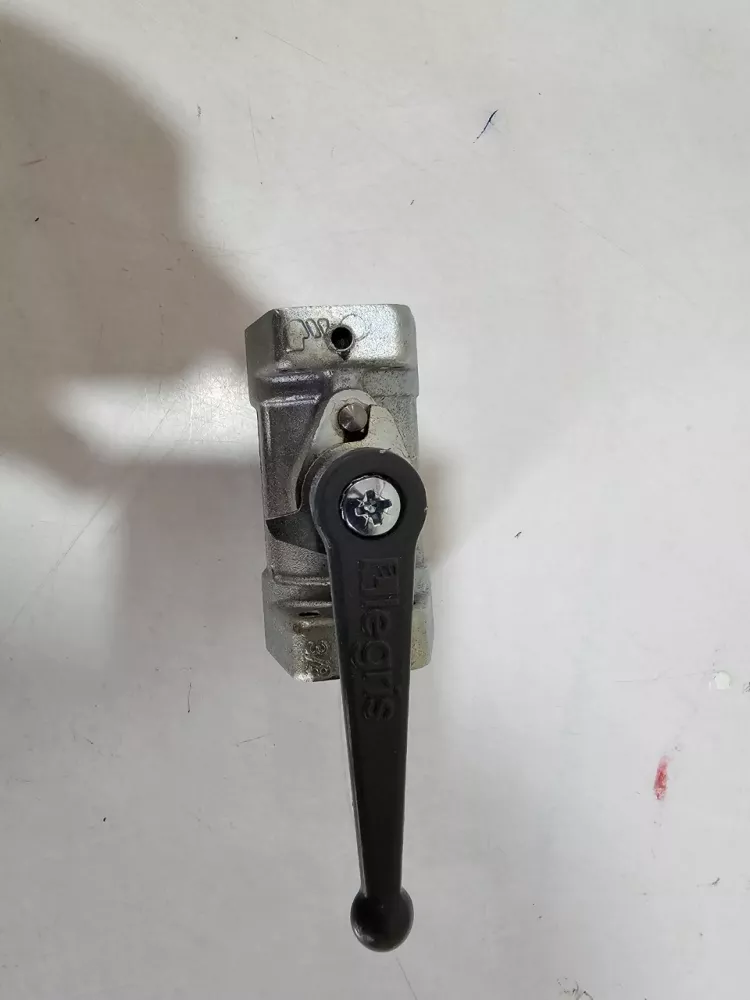

| Product Type: | Ball Valves |
| Diameter Nominal (DN): | 10 |
| Product Style: | Female Ball Valves |
| Product Series: | High Pressure Series |
| Function: | 2-Way |
| Operation Type: | Lever-operated |
| Shape: | In-line |
| Maximum Operating Pressure: | 300 bar, 30 MPa, 4350.9 psi |
| Flow Rate: | n/a |
| Connection Type: | BSPP |
| Connection Size: | G3/8 |
| Orifice Size: | 10 mm |
| Configuration: | 2/2 |
| For Fluid Type: | Air, Inert Gas |
| Minimum Operating Temperature: | -15 °C, 5 °F |
| Maximum Operating Temperature: | 80 °C, 176 °F |
| Mounting Type: | In-line |
| Actuation Type: | Manual |
| Specifications Met: | DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH |
| Materials of Construction: | Treated Brass |
| Body Material: | Treated Brass |
| Seat Material: | NBR |
| Seal Material: | NBR |
| Stem Material: | Stainless Steel |
| Ball Material: | Brass |
| O-Ring Material: | NBR |
| Handle Type: | Grey long lever (ZAMAK) |
| Weight: | 0.722 kg, 1.444 lb |
| Quantity per Box: | 2 |
| Region of Origin: | France |
| Operating Pressure: | Vacuum to 300 bar |
| Stem Seal Material: | PTFE |
| Ball Seal Material: | NBR |
