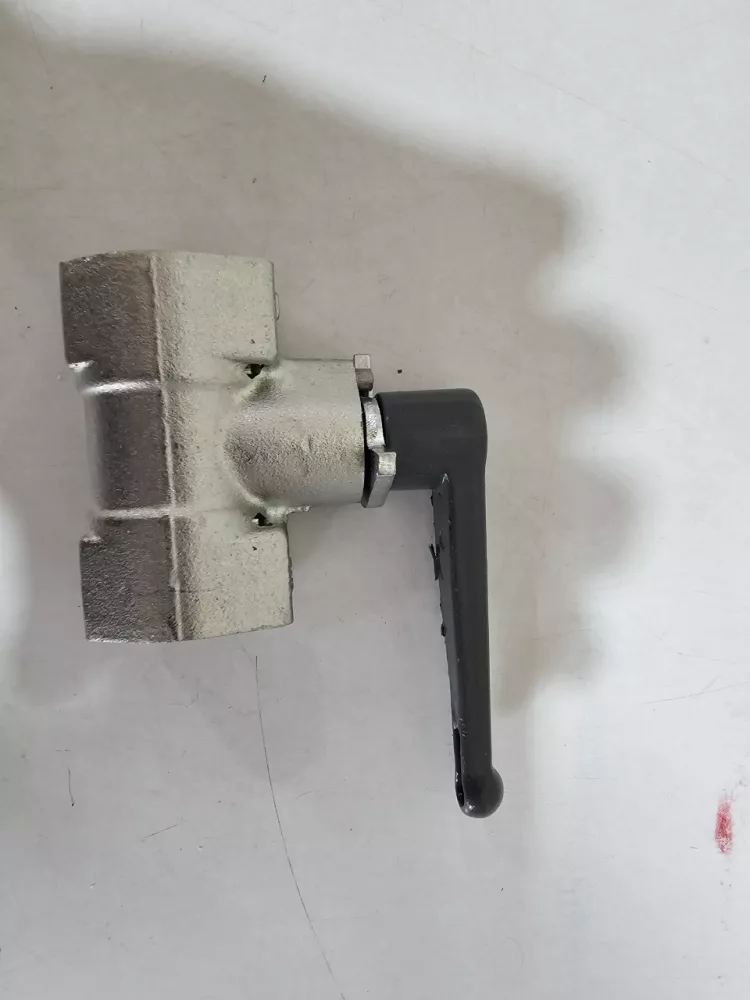

Balll valve / Parker Legris / made in France
MOQ box 5
High pressure
| Maximum Flow Rate: | n/a |
| Brand: | Legris |
| Connection 1 Thread Size (metric): | G1/4 |
| Division: | Low Pressure Connectors Europe Division |
| Industry: | Industrial Manufacturing Equipment |
| Application: | Pneumatic, Process Control, Safety, Fluid Control, Automotive Process, Foundry, Forming, Machine Tools, Textile, Spectacle-Making Industry, Turbines, Deep-Sea Diving |
| Diameter Nominal (DN): | 7 |
| Technology: | Fluid & Gas Handling, Process Control, Pneumatics |
| Product Type: | Ball Valves |
| Product Style: | Female Ball Valves |
| Product Series: | High Pressure Series |
| Function: | 2-Way |
| Operation Type: | Lever-operated |
| Shape: | In-line |
| Maximum Operating Pressure: | 300 bar, 30 MPa, 4350.9 psi |
| Flow Rate: | n/a |
| Connection Type: | BSPP |
| Connection Size: | G1/4 |
| Orifice Size: | 7 mm |
| Configuration: | 2/2 |
| For Fluid Type: | Air, Inert Gas |
| Minimum Operating Temperature: | -15 °C, 5 °F |
| Maximum Operating Temperature: | 80 °C, 176 °F |
| Mounting Type: | In-line |
| Actuation Type: | Manual |
| Specifications Met: | DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), RoHS, REACH |
| Materials of Construction: | Treated Brass |
| Body Material: | Treated Brass |
| Seat Material: | NBR |
| Seal Material: | NBR |
| Stem Material: | Stainless Steel |
| Ball Material: | Brass |
| O-Ring Material: | NBR |
| Handle Type: | Grey long lever (ZAMAK) |
| Weight: | 0.402 kg, 0.804 lb |
| Quantity per Box: | 5 |
| Region of Origin: | France |
| Operating Pressure: | Vacuum to 300 bar |
| Stem Seal Material: | PTFE |
| Ball Seal Material: | NBR |
| Products | Diameter Nominal (DN) | Connection 1 Thread Size (metric) |
|---|---|---|
| 4402 07 13 | 7 | G1/4 |
| 4402 10 17 | 10 | G3/8 |
| 4402 13 21 | 13 | G1/2 |
4402 07 13
Balll valve / Parker Legris / made in France
MOQ box 5
High pressure
