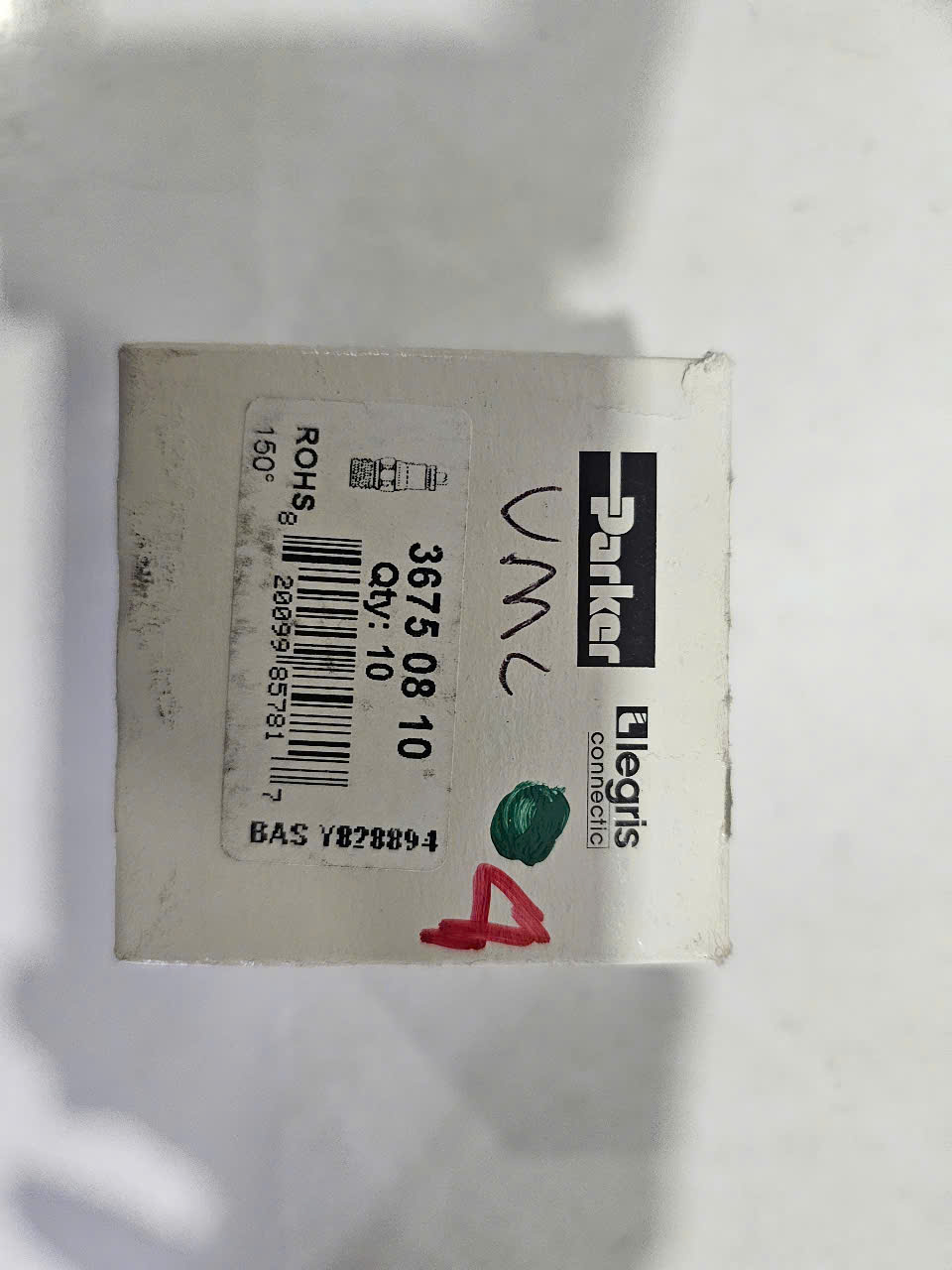

3675 08 10
| Seal Material: | FKM |
| Shape: | Straight |
| Connection 2 Size: | R 1/8 |
| Connection 2 Type: | Male BSPT |
| Connection 1 Size: | 8 mm (O.D.) |
| Configuration: | Tube to Port |
| For Fluid Type: | Water, Air (Compressed Air), Lubricants (Grease) |
| Weight: | 0.015 kg |
| Connection 3 Size: | n/a |
| Connection 2 Type: | Male BSPT |
| Connection 1 Type: | Tube |
| Industry: | Industrial Manufacturing Equipment, Life Sciences |
| Maximum Operating Temperature: | 150 °C |
| Brand: | Parker, Legris |
| Coating: | FDA Chemical Nickel-plated |
| Configuration: | Tube to Port |
| Minimum Operating Temperature: | -25 °C |
| Maximum Operating Pressure: | 30 bar |
| Shape: | Straight |
| Application: | Food Processing, In-Plant Automotive, Medical Equipment, Printing, Misting, Welding Robots |
| Product Type: | Push-to-Connect Fittings |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | R 1/8 |
| Connection 1 Size: | 8 mm (O.D.) |
| Vacuum Pressure Rating: | 755 mm-Hg |
| Division: | Low Pressure Connectors Europe Division |
| Body Material: | Brass |
| Quantity per Box: | 10 |
| Specifications Met: | PED, RoHS, REACH, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), FDA 21 CFR, EC RG: 1935/2004 |
| Seal Material: | FKM |
| Connection 3 Type: | n/a |
| Body Material: | Brass, FDA Chemical Nickel-plated |
| Product Style: | Stud Fitting |
3675 08 10
| Seal Material: | FKM |
| Shape: | Straight |
| Connection 2 Size: | R 1/8 |
| Connection 2 Type: | Male BSPT |
| Connection 1 Size: | 8 mm (O.D.) |
| Configuration: | Tube to Port |
| For Fluid Type: | Water, Air (Compressed Air), Lubricants (Grease) |
| Weight: | 0.015 kg |
| Connection 3 Size: | n/a |
| Connection 2 Type: | Male BSPT |
| Connection 1 Type: | Tube |
| Industry: | Industrial Manufacturing Equipment, Life Sciences |
| Maximum Operating Temperature: | 150 °C |
| Brand: | Parker, Legris |
| Coating: | FDA Chemical Nickel-plated |
| Configuration: | Tube to Port |
| Minimum Operating Temperature: | -25 °C |
| Maximum Operating Pressure: | 30 bar |
| Shape: | Straight |
| Application: | Food Processing, In-Plant Automotive, Medical Equipment, Printing, Misting, Welding Robots |
| Product Type: | Push-to-Connect Fittings |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | R 1/8 |
| Connection 1 Size: | 8 mm (O.D.) |
| Vacuum Pressure Rating: | 755 mm-Hg |
| Division: | Low Pressure Connectors Europe Division |
| Body Material: | Brass |
| Quantity per Box: | 10 |
| Specifications Met: | PED, RoHS, REACH, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), FDA 21 CFR, EC RG: 1935/2004 |
| Seal Material: | FKM |
| Connection 3 Type: | n/a |
| Body Material: | Brass, FDA Chemical Nickel-plated |
| Product Style: | Stud Fitting |
