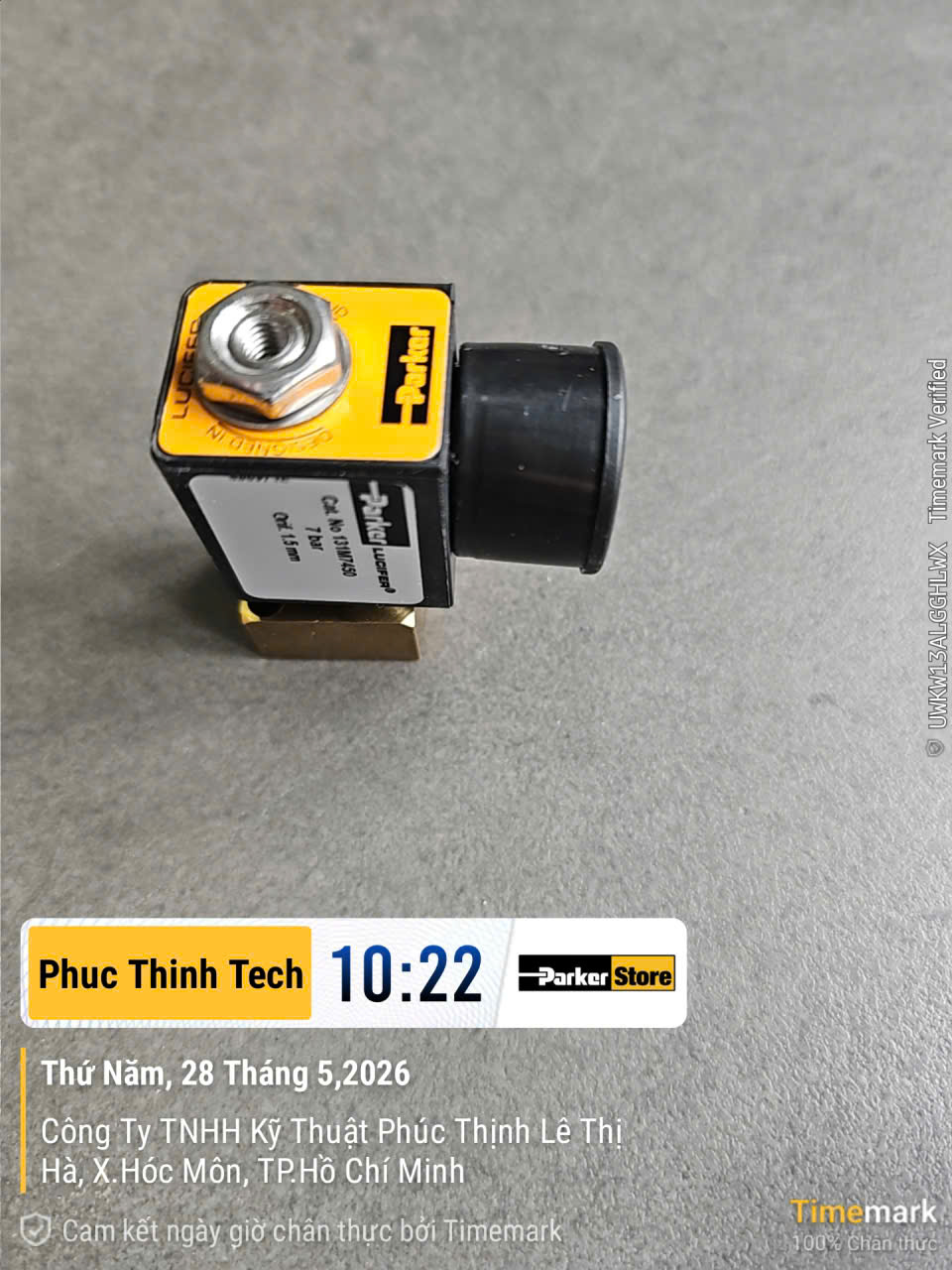

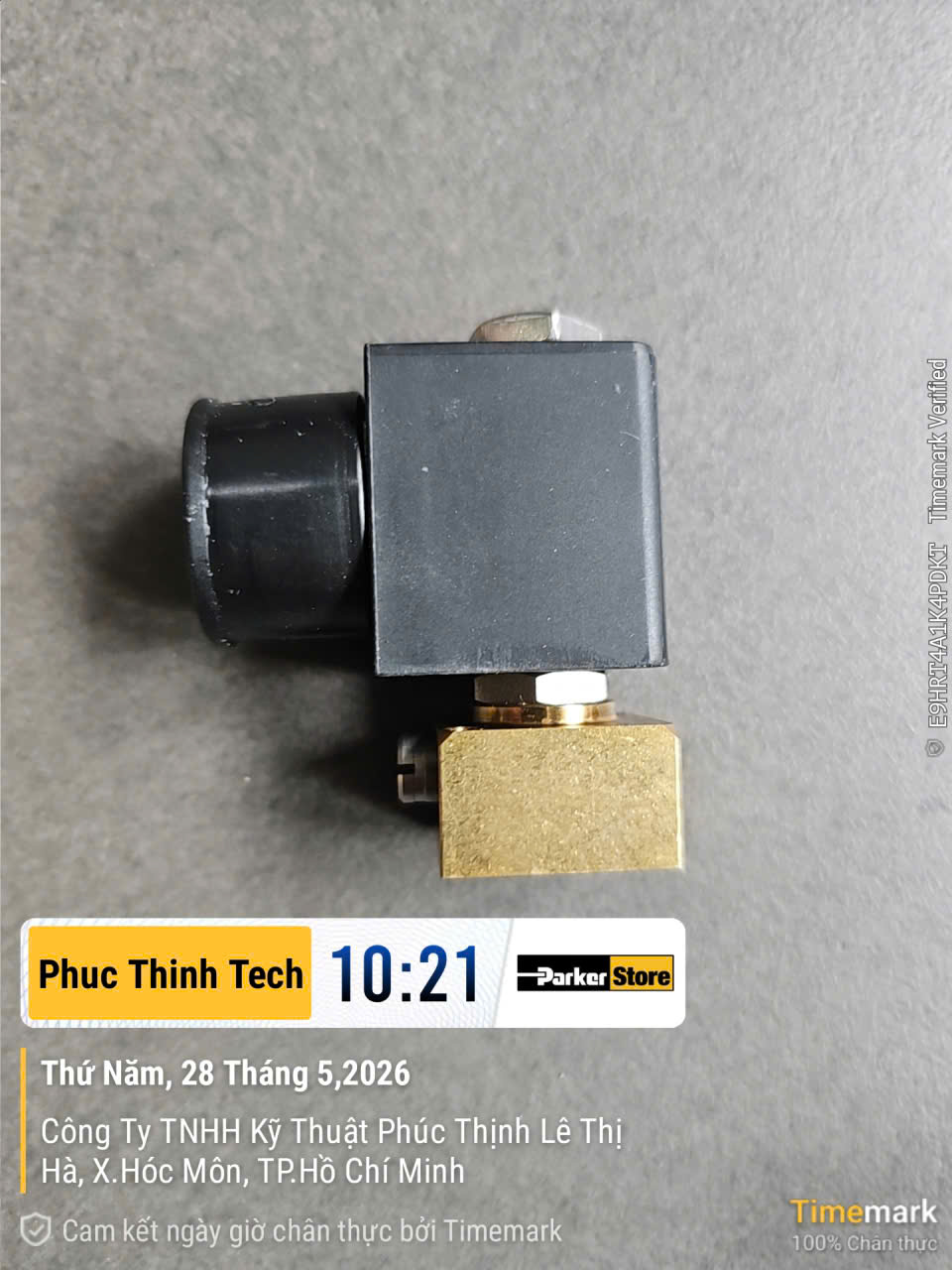

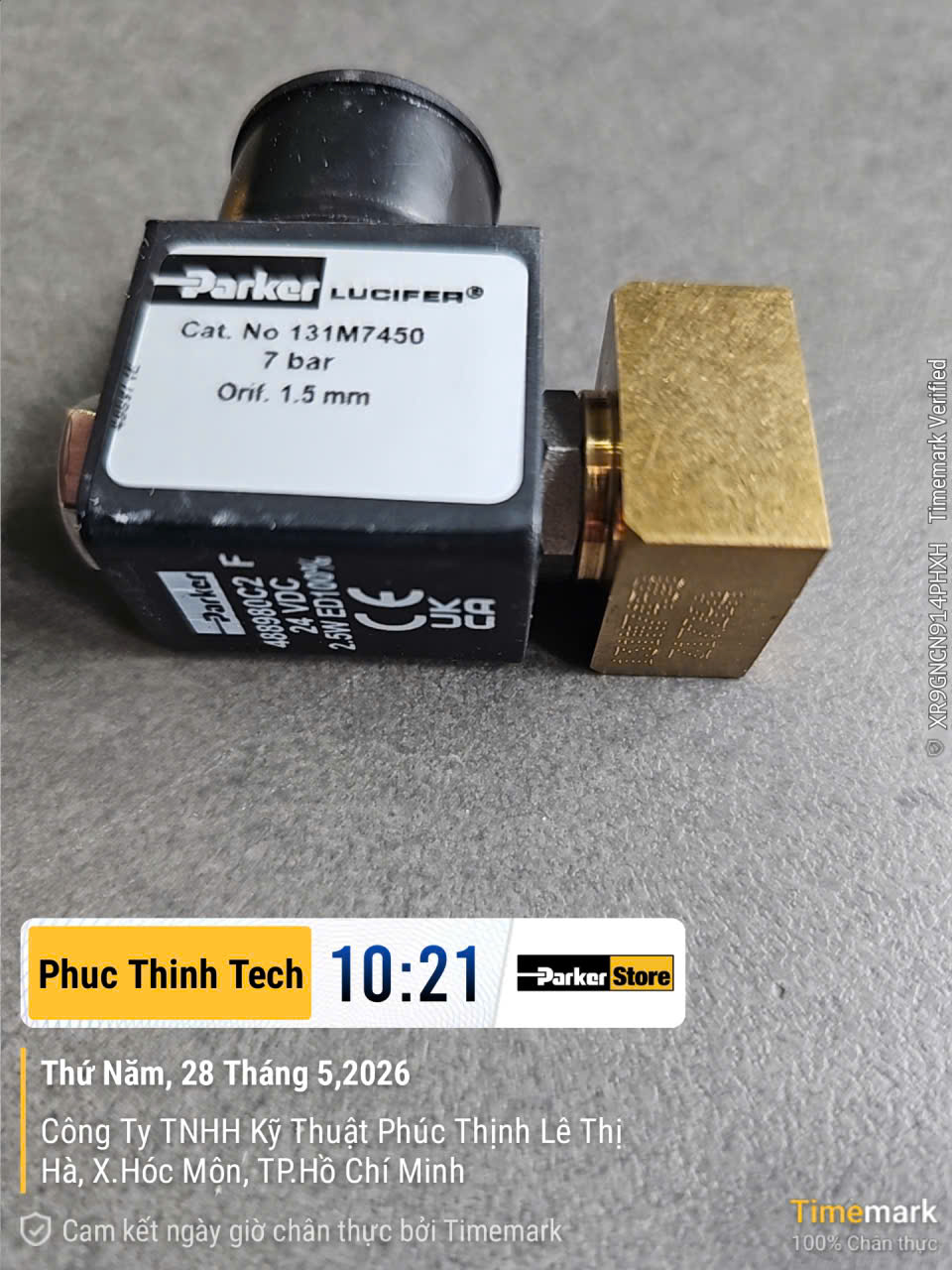

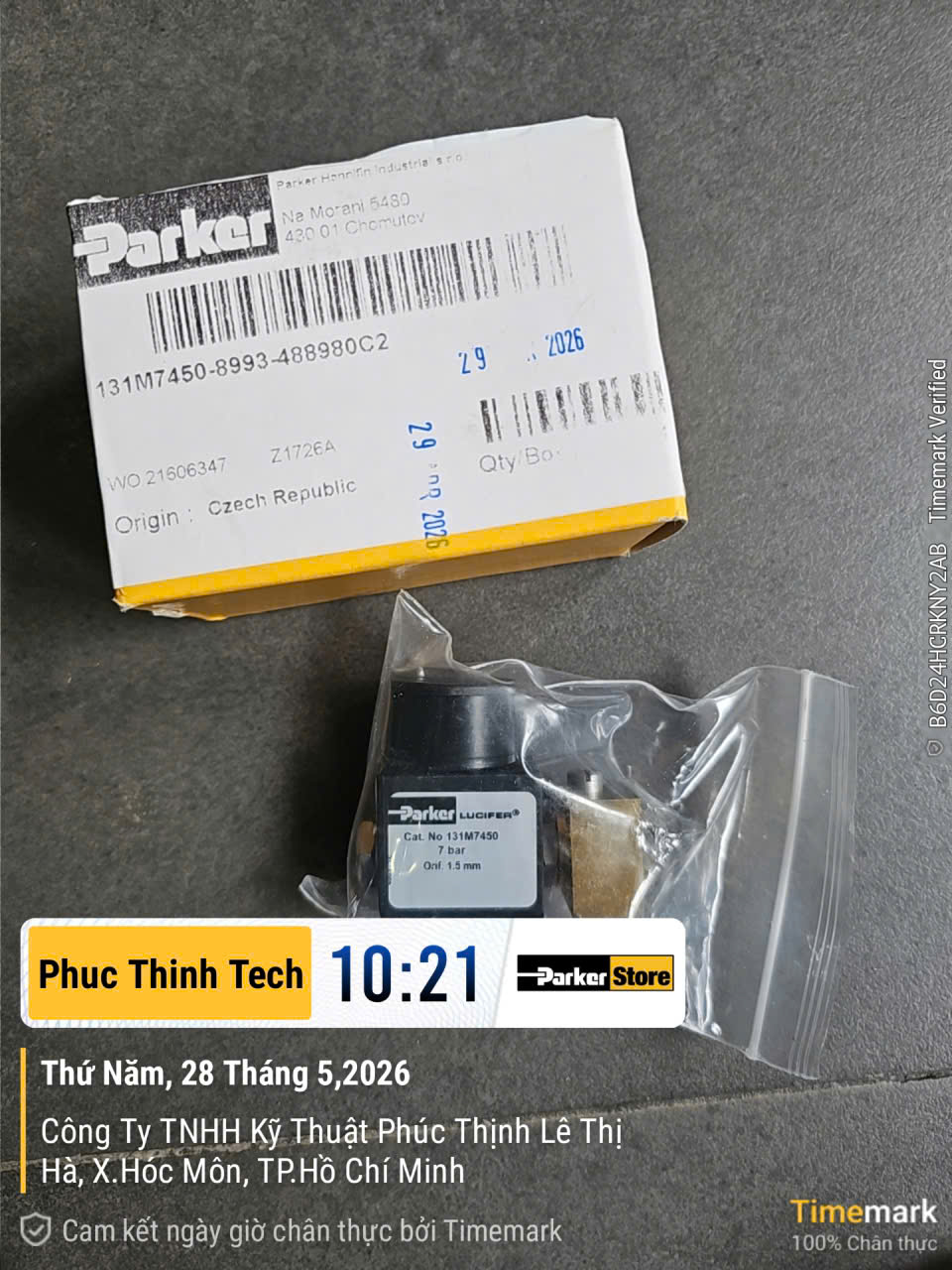

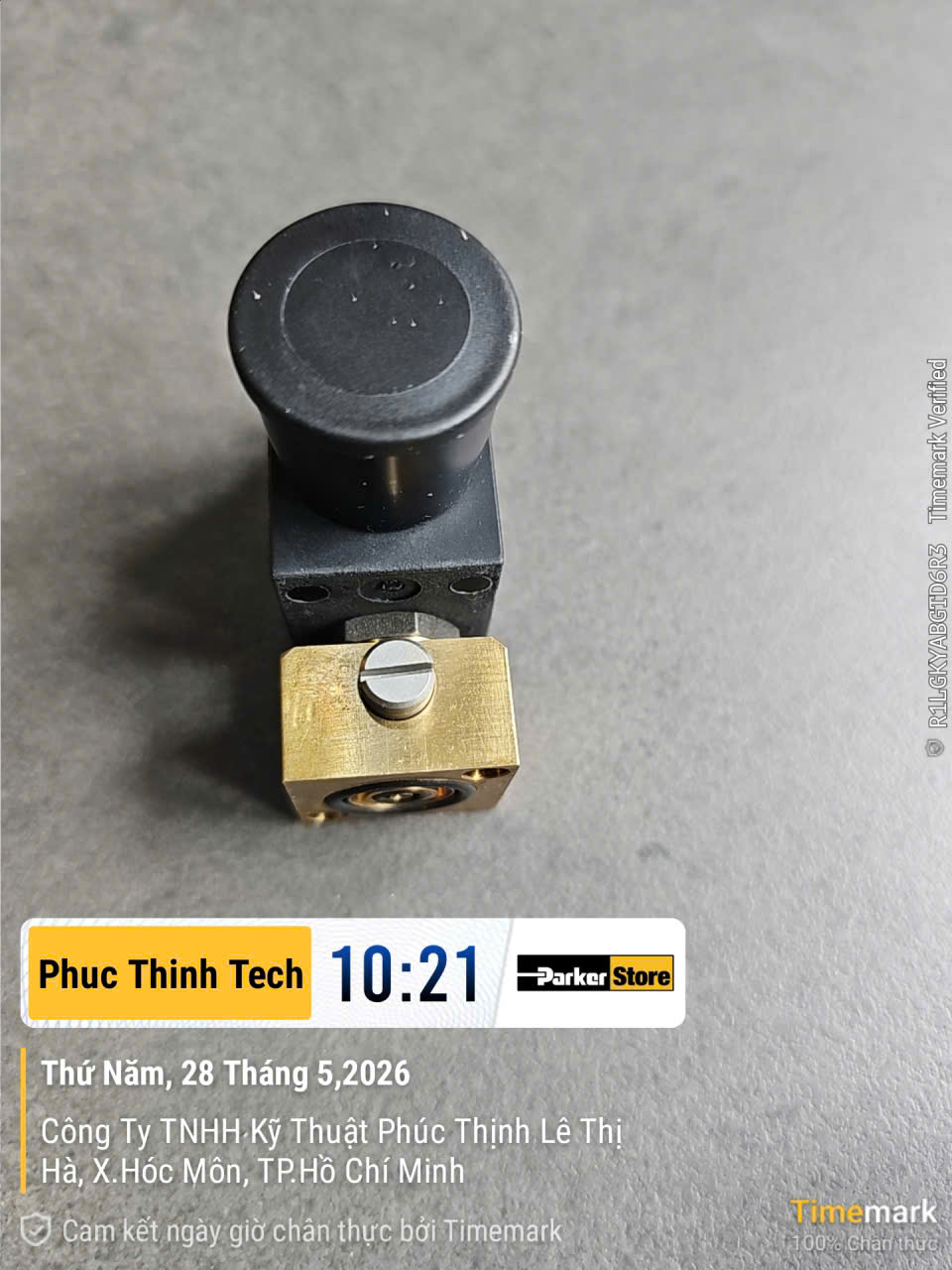

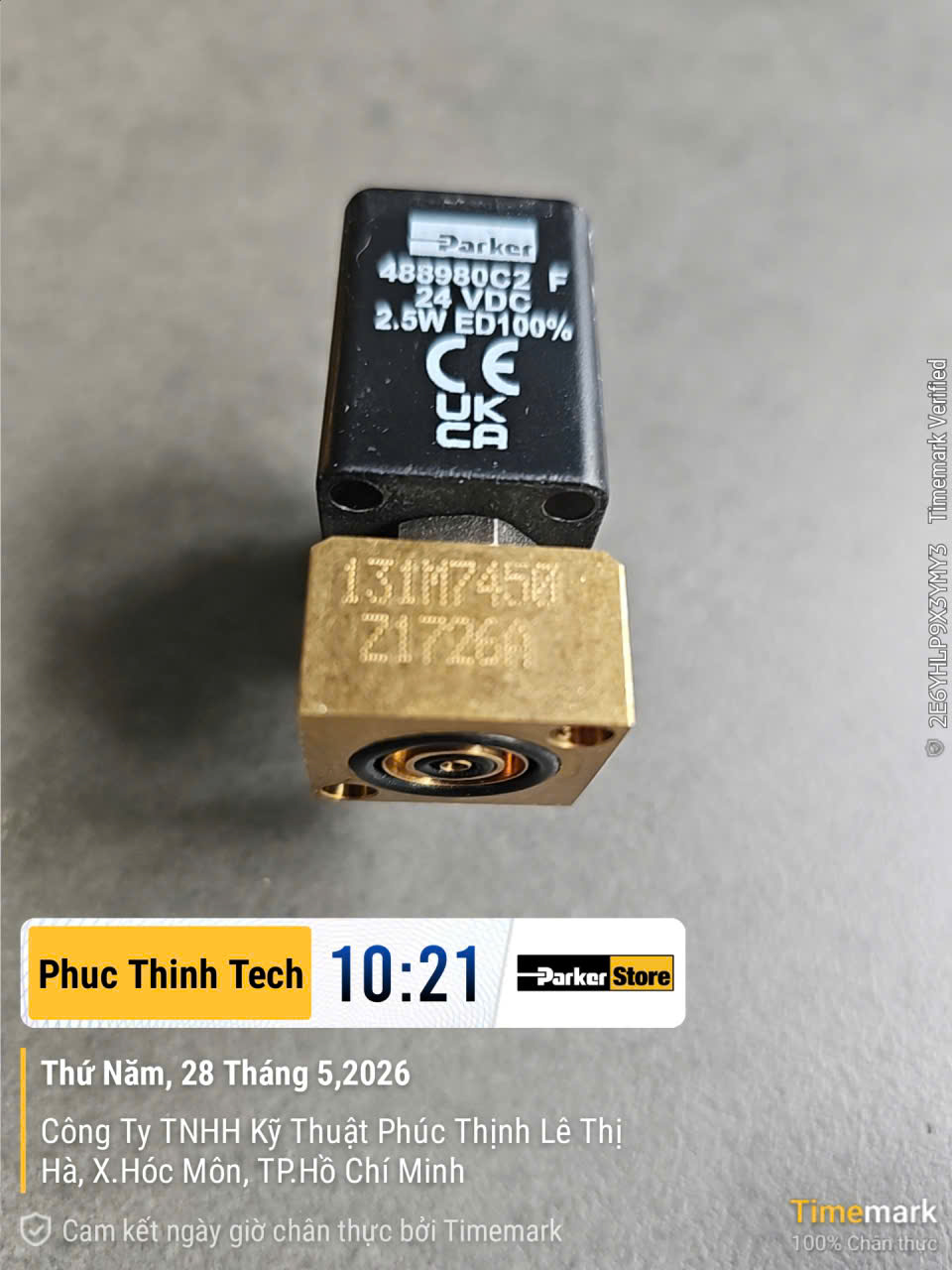

131M7450-8993-488980C2
| Maximum Operating Pressure: | 10 bar |
| Power Supply Voltage: | 24V DC |
| ATEX Specifications Met: | - |
| Flow Coefficient 1: | 0,7 l/min |
| Specifications Met: | Manual Override |
| Electrical Connection: | 2 P + E plug according to EN 175301-803 type B |
| Orifice Size: | 1,2 mm |
| Port Size: | Flanged |
| Valve Type: | 3/2 Way |
| Function: | Normally Closed (NC) |
| Actuation Type: | Direct Acting |
| Port Type: | Flanged |
| Body Material: | Brass |
| Media: | Air, Liquids, Inert Gases |
| Seat Material: | Stainless Steel |
| Exhaust Orifice Size: | 1.5 mm |
| Flow Coefficient 2: | 0.04 m3/hour |
| Minimum Operating Pressure: | 0 bar |
| Minimum Fluid Temperature: | -10 °C |
| Maximum Fluid Temperature: | 75 °C |
| Seal Material: | FKM |
| Coil Power Consumption: | 2.5 W |
| Coil Temperature Range: | -40 to 50 °C |
| Insulation Class: | F (155°C) |
| Coil Specifications Met: | CE - UKCA       |
