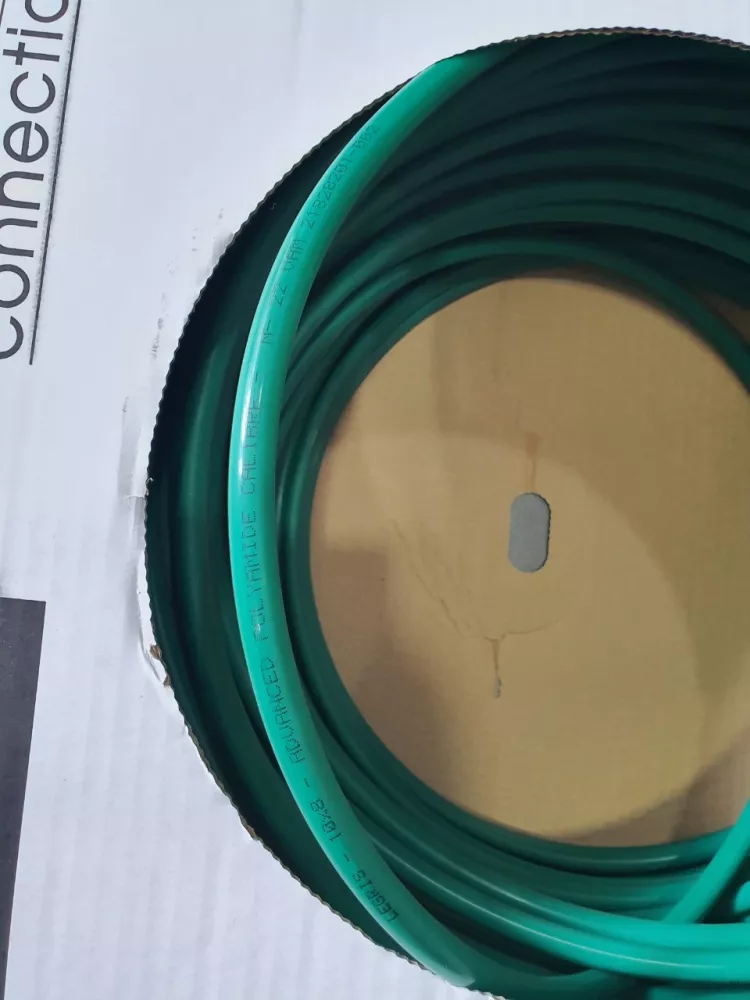

1100P10 02 PA ADVANCE TUBING GREEN

1100P10 02 PA ADVANCE TUBING GREEN


Hãy trở thành người đầu tiên đánh giá sản phẩm này ( 0)
1100P10 02 PA ADVANCE TUBING GREEN


Liên hệ

  • Mã sản phẩm:
  • 1100P1002
  • Đơn vị tính:
  • Cái
  • Tình trạng:
  • Nhà cung cấp:
  • Parker EU

Polyamide (PA) Flexible Tubing | #1100P10 02

Technical Specifications

  • Tube O.D. (mm):10
  • Tubing Material:PA
  • Tube I.D. (mm):8
  • Color:GREEN
  • Length (m):100
  • Weight (per unit of measure):0.02939 kg/m
  • Maximum Operating Pressure:50 bar
  • Minimum Operating Temperature:-40 °C
  • Maximum Operating Temperature:Up to 100°C - See the graph “Working Pressure/Working Temperature”
  • Vacuum Pressure Rating:755 mm-Hg
  • Weight:3.43 kg/package
  • Bend Radius:50 mm
  • Number of Tubes:1
  • Application:Packaging, Tooling, Compressed Air, Motion Technologies, Robotics, Industrial Machinery
  • Media:Semi-Rigid PA: Compressed air, other fluids /Rigid PA: Compressed air,lubricants, other fluids
  • Specifications Met:Industrial: DI: 2002/95/EC (RoHS), 2011/65/EC; DI: 97/23/EC (PED); RG: 1907/2006 (REACH)/Transportation: Chemical performance and resistance tested according to DIN 74324 -1 / DIN 73378 / ISO 7725
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com
