0109 14 21

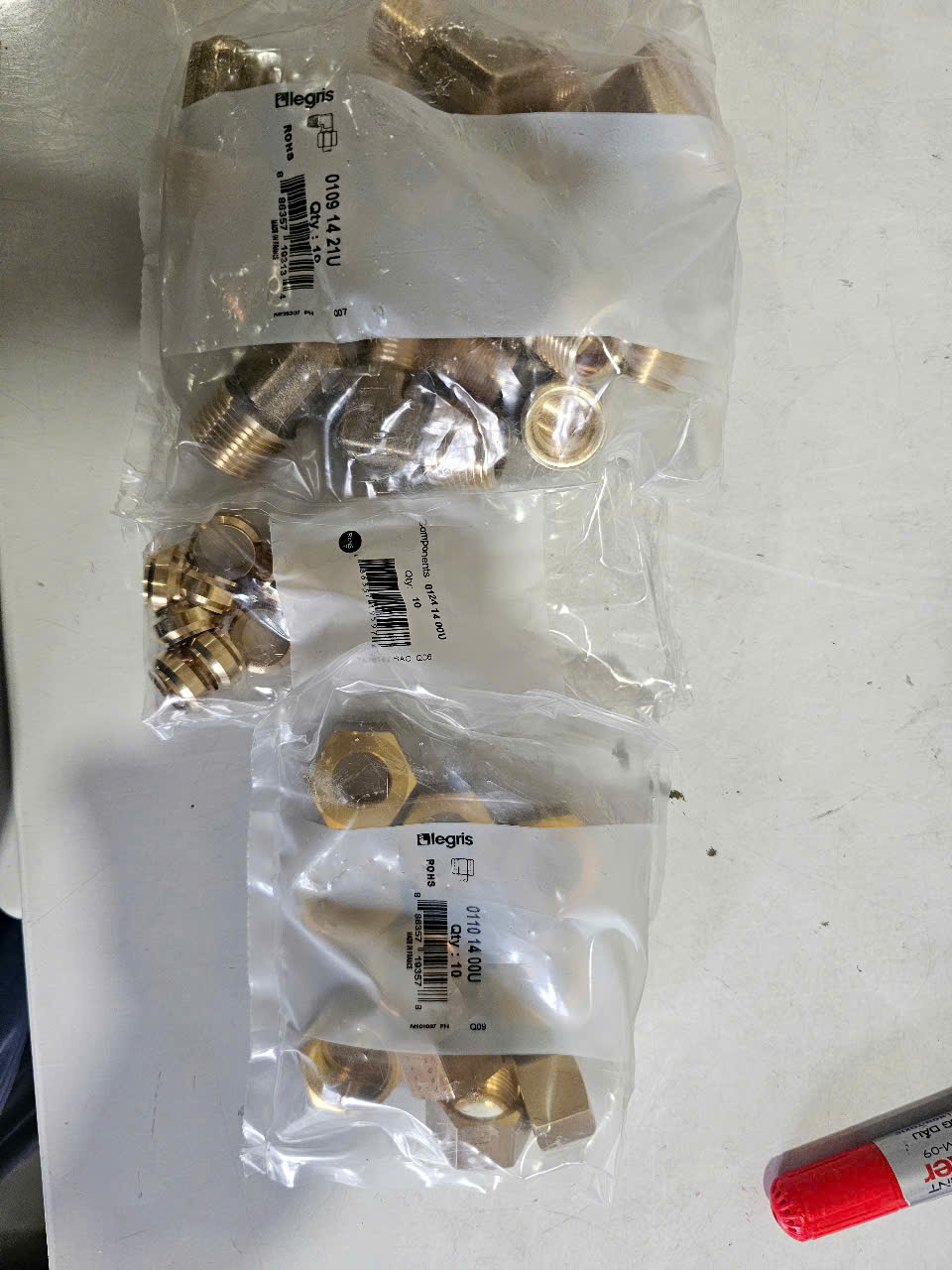

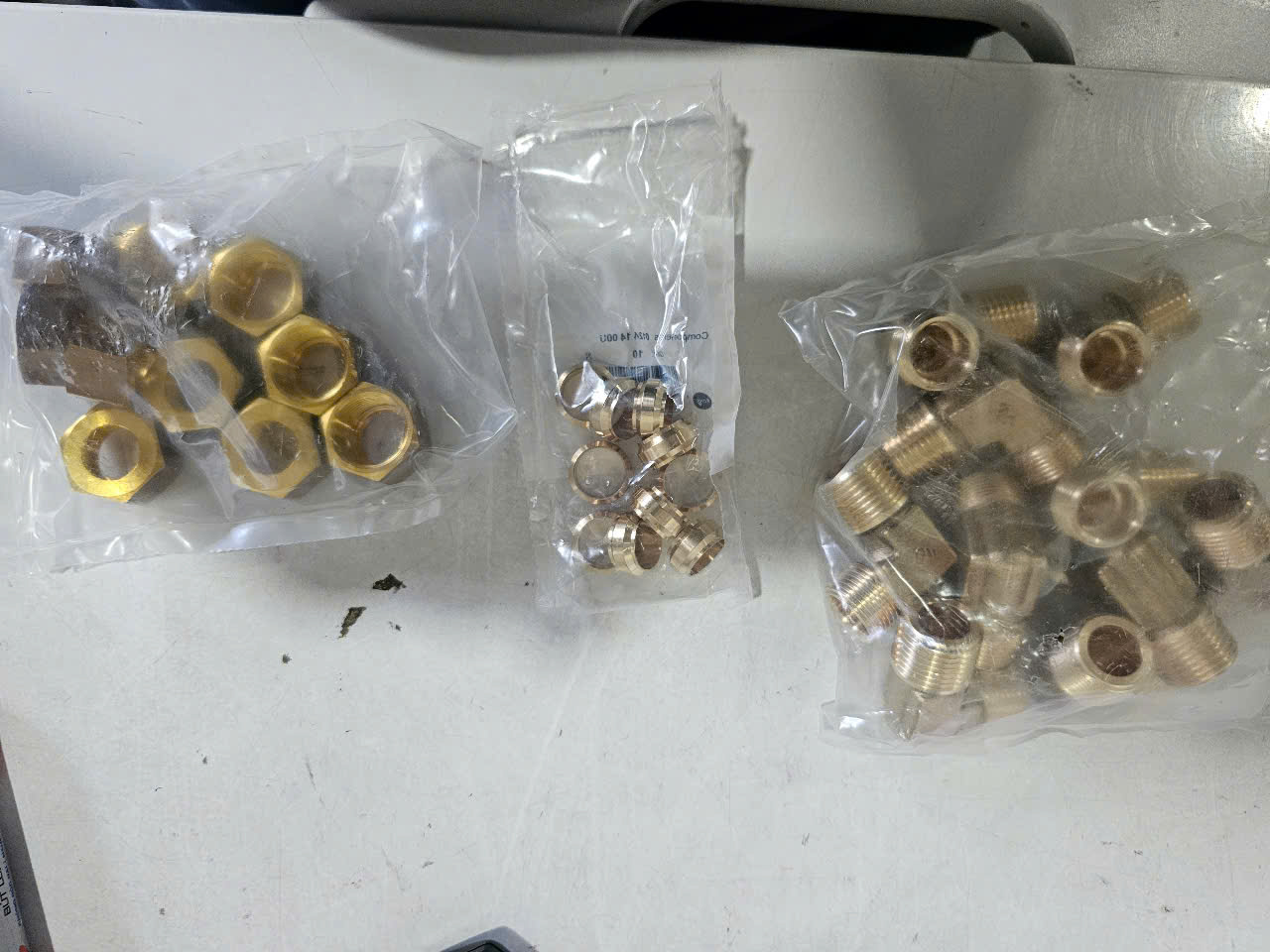

0109 14 21 = 0109 14 21 U +0110 14 00 u + 0124 14 00U
| Connection 1 Thread Size (metric): | R1/2 |
| O-Ring Material: | na |
| Product Type: | Brass compression fittings |
| Nut Material: | BRASS |
| Sleeve Material: | BRASS |
| Minimum Operating Temperature: | -40 °C |
| Maximum Operating Temperature: | 100 °C |
| Quantity per Box: | 10 |
| Weight: | 0.111 kg |
| Application: | Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery |
| Media: | Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants |
| Specifications Met: | CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX) |
| Connection 1 Thread Style: | BSPT |
| Connection 2 Tube O.D. (mm): | 14 |
| Shape: | Male stud elbow fixed 90° thread |
0109 14 21
