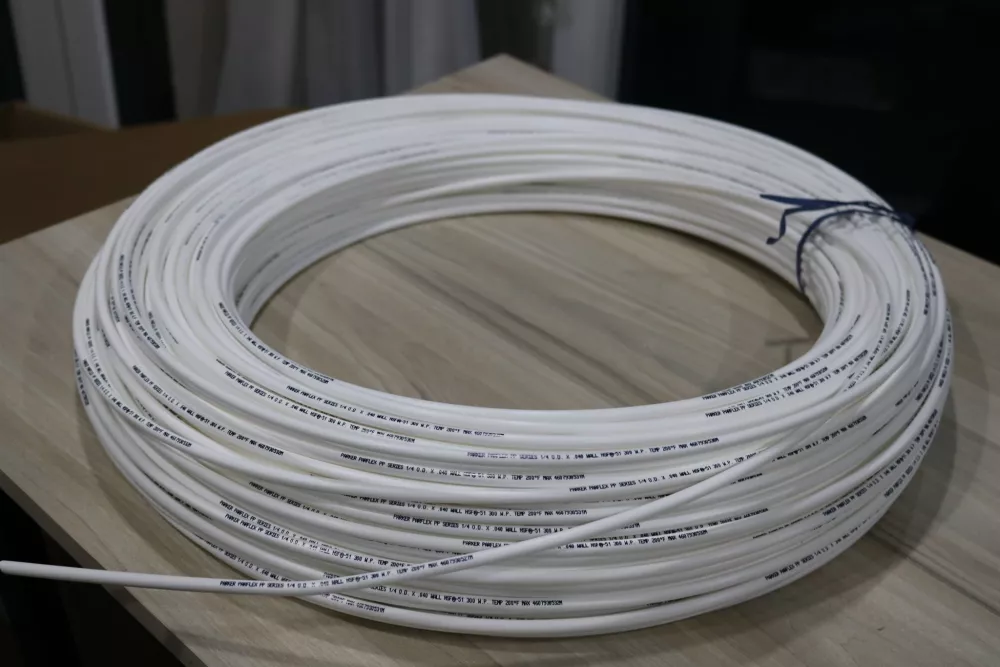

Ống dây Parker Parflex Polypropylene PP-43-0500

Ống dây Parker Parflex Polypropylene PP-43-0500


Hãy trở thành người đầu tiên đánh giá sản phẩm này( 0)
Ống dây Parker Parflex Polypropylene PP-43-500 . Ống dây Series PP-43 có thể sử dụng cho các linh kiện sản xuất máy thở, hoặc thiết bị y tế Ống dây Parker Polypropylene PP-43 có Áp suất Max 20 bar Ống dây Parker Polypropylene PP-43 có Nhiệt độ min max -18oC đến 90oC Ống dây Polypropylene PP-43Đường kính ngoài 1/4 inch Ống dây Parker Polypropylene PP-43 Màu trung …

Liên hệ


Technical Specifications


Color: Natural
Tube O.D. (inch): 1/4
Disclaimer: The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Tube Outside Diameter: 6.4 mm, 1/4 inch
Tube Inside Diameter: 4.3 mm, .170 inch
Tube Wall Thickness: 1 mm, .040 inch
Maximum Operating Pressure: 20.7 bar, 300 psi
Minimum Burst Pressure: 82.7 bar, 1200 psi
Minimum Operating Temperature: -18 °C, 0 °F
Maximum Operating Temperature: 93 °C, 200 °F

Application: Fluid Transfer, Instrumentation, Process Piping Systems, Pneumatics
Media: Air, Chemicals, Chlorinated Water, Hot Water
Length per Package: 500 ft
Minimum Bend Radius: 1 inch, 25 mm
Specifications Met: FDA
Tube Material: Polypropylene
Compatible Fitting: Compression, Compress-Align®, Poly-Tite, Hi-Duty, Fast & Tite, Prestolok Brass and TrueSeal
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

Ống dây Parker Parflex Polypropylene PP-43-500 . Ống dây Series PP-43 có thể sử dụng cho các linh kiện sản xuất máy thở, hoặc thiết bị y tế
Ống dây Parker Polypropylene PP-43 có Áp suất Max 20 bar
Ống dây Parker Polypropylene PP-43 có Nhiệt độ min max -18oC đến 90oC
Ống dây Polypropylene PP-43Đường kính ngoài 1/4 inch
Ống dây Parker Polypropylene PP-43 Màu trung tính
